Ruler ,Pratractor, Straightedge ,Triangular Ruler Full Automatic Rotary Disc Silk Screen Printer

  • Product Item:HT-S108F
  • Category:Ruler Full Auto Screen Printing Machine
  • Product Manual:Ruler Full Automatic Silk Screen Printer, Stationery Ruler Printing Machine,Pratractor Silk Screen Printing Machine , Straightedge Printing Machine , Triangular Ruler Printing Machine,
BASIC INFO

<iframe width="480" height="270" src="https://www.youtube.com/embed/KQdWx8s42iw" frameborder="0" allow="accelerometer; autoplay; encrypted-media; gyroscope; picture-in-picture" allowfullscreen></iframe>


TagRuler Full Automatic Silk Screen Printer, Stationery Ruler Printing Machine

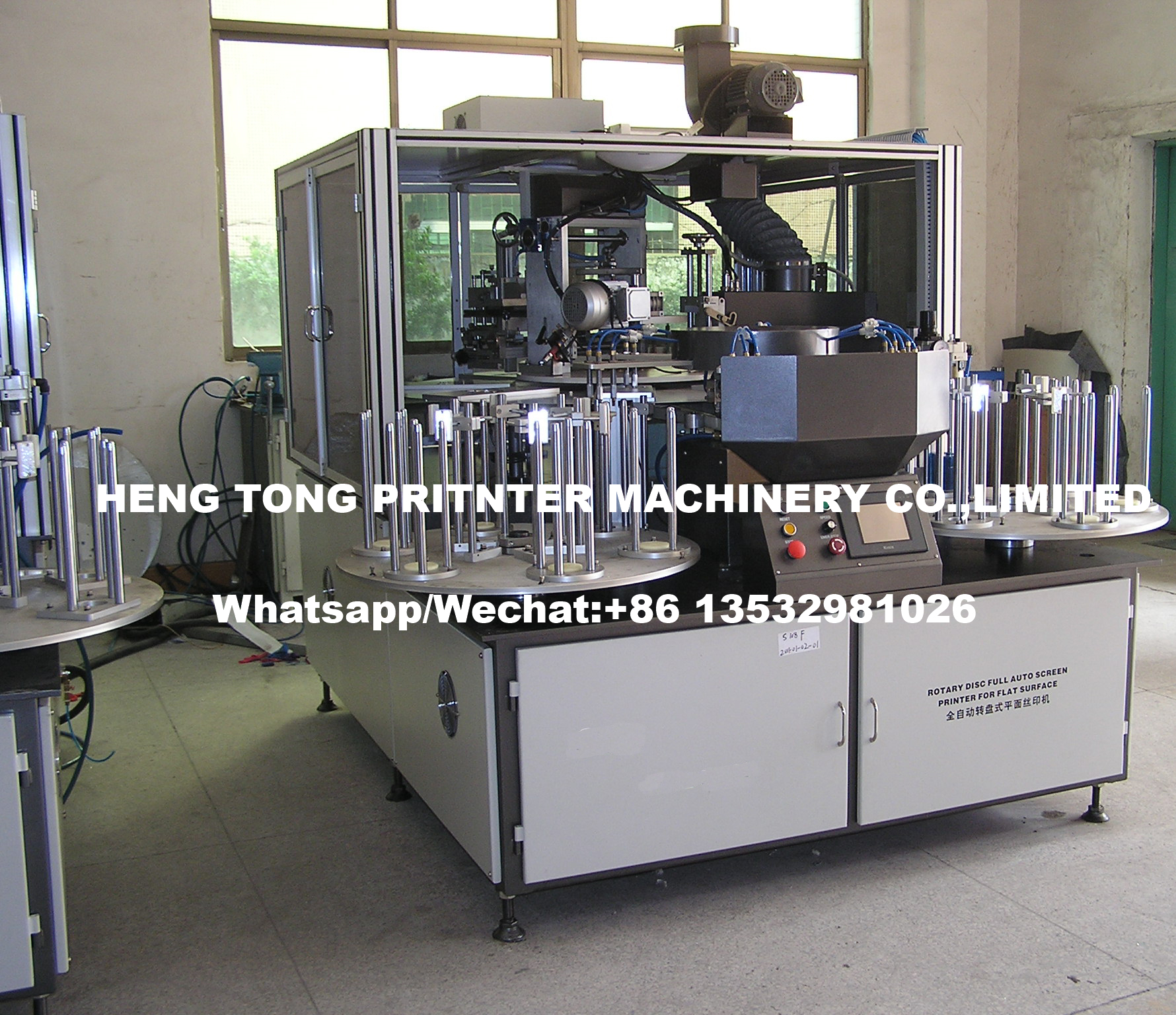

Ruler Full Automatic Rotary Disc Silk Screen Printer

ModelHT-S108F


Description

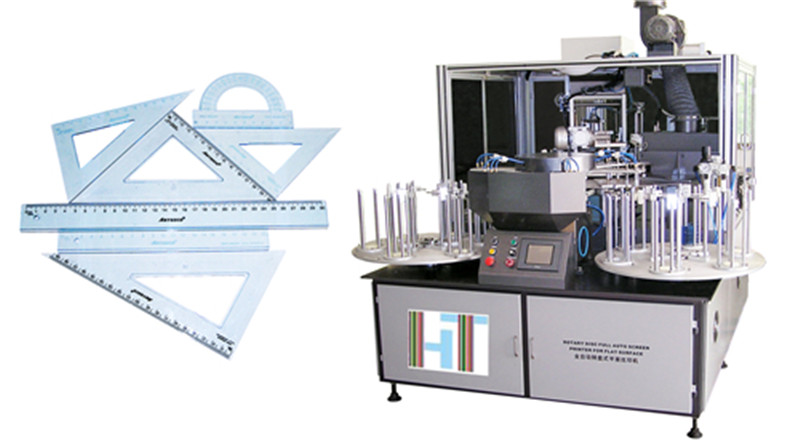

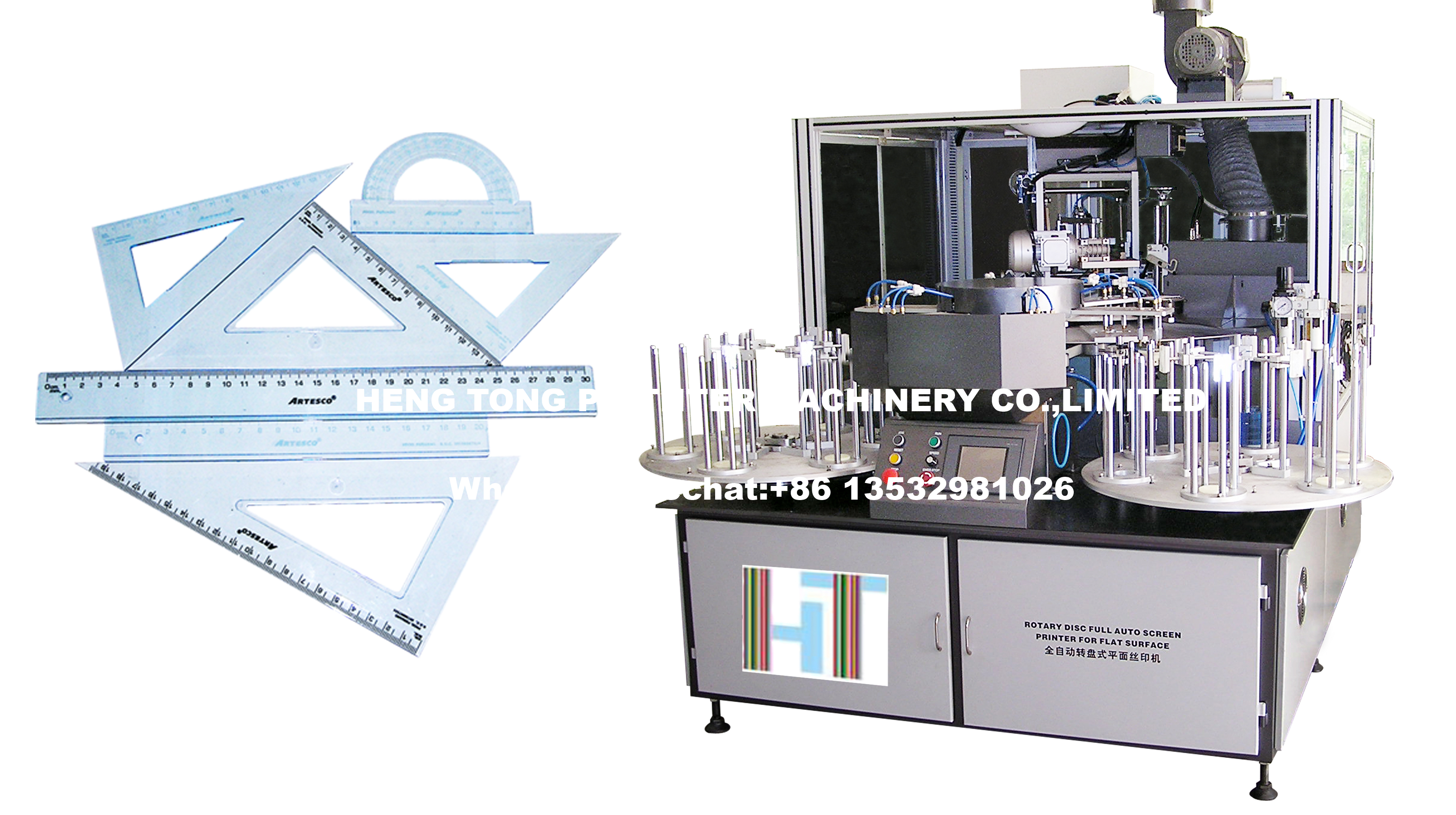

Multifunction Full Automatic Rotary Disc Ruler Screen Printer For Flat Surface

With 8 work stations is designed for students ruler specially and developed for flat surface within 300x100mm range. It is composed of 6 work stations storing structure,6 work stations jacking loading and off-loading structure, servo lifting structure,surface high voltage electrostatic dedusting structure,8 work stations divider transmission structure, automatic press product structure, no product no print, variable speed governing print with single color structure, 1 group UV coating system and 6 work stations off-loading and storing structure. To meet technology request of special product, each work station can be equipped with different fixture to increase work efficiency and save labour, and help customer achieve one machine servers several purpose. In addition, adopted divider rotary design, mechanical transmission structure and microcomputer controlling system, simplify operation and guarantee high quality printing effect.


Main Part

●Gear Reducer: Italian SITI MNHL 30/2  27.43:1

●Motor: Italian SITI  1.1KW  3phase 380V

●Cam Divider: Taiwan DEX  15AD-8-180-SLB-WT/U

●Cam Divider: Taiwan DEX 8DFH-6-180-SLB-WR

●Vacuum PumpPULIZK VP-1400V

●Touch Screen: Japan PRO-FACE GP2301-SC41-24V

●PLC: Japan OMRON EB38A6-P4R-1000

●Pneumatic Components: Japan SMC

● Inverter: Japan YASKAWA


Main Parameter

● Print Speed: >=50pcs/minute

Printed product size range

●Length: 50mm~40mm

●Width: 10mm~100mm

● Height: 1mm~30mm

Actual printing size

●Length:10mm~300mm

●Width: 5mm~150mm

●Height: 1mm~30mm

●Power Supply: 380V  3phase  50/60Hz

●Air Pressure: 0.5Mpa0.8Mpa

●Max Power: 8kw

●Machine Size:L1500x(W)1900x(H)1800mm

● Machine Weight: 1500Kg

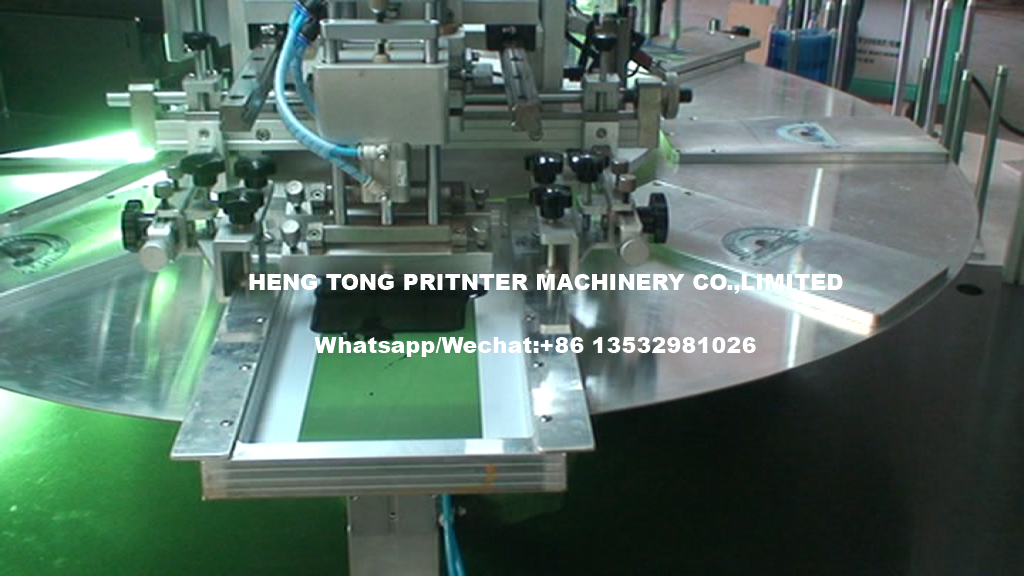

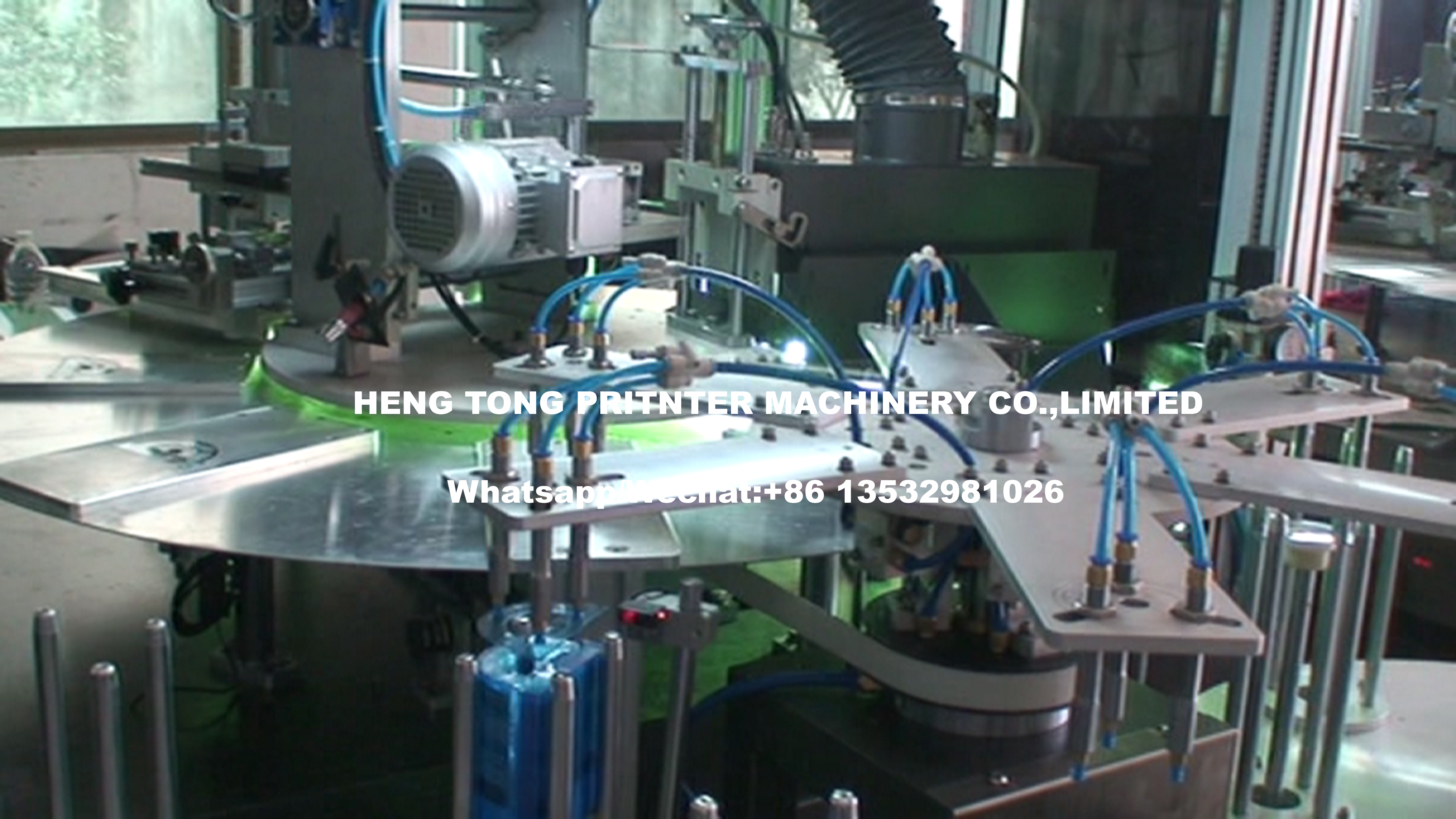

Video:

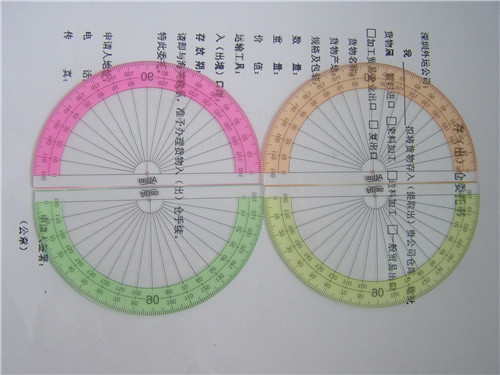

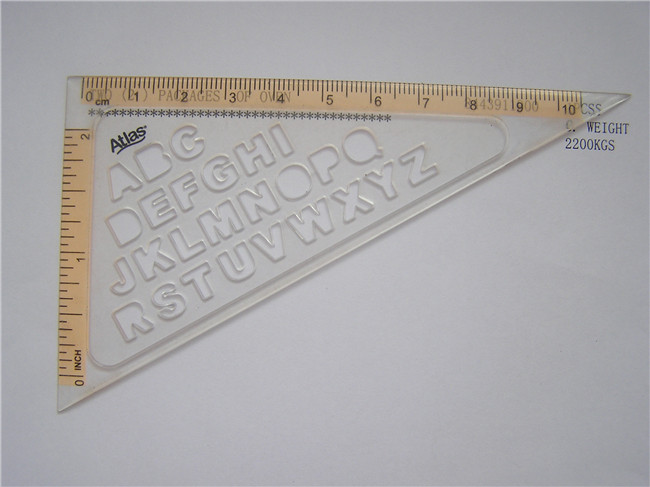

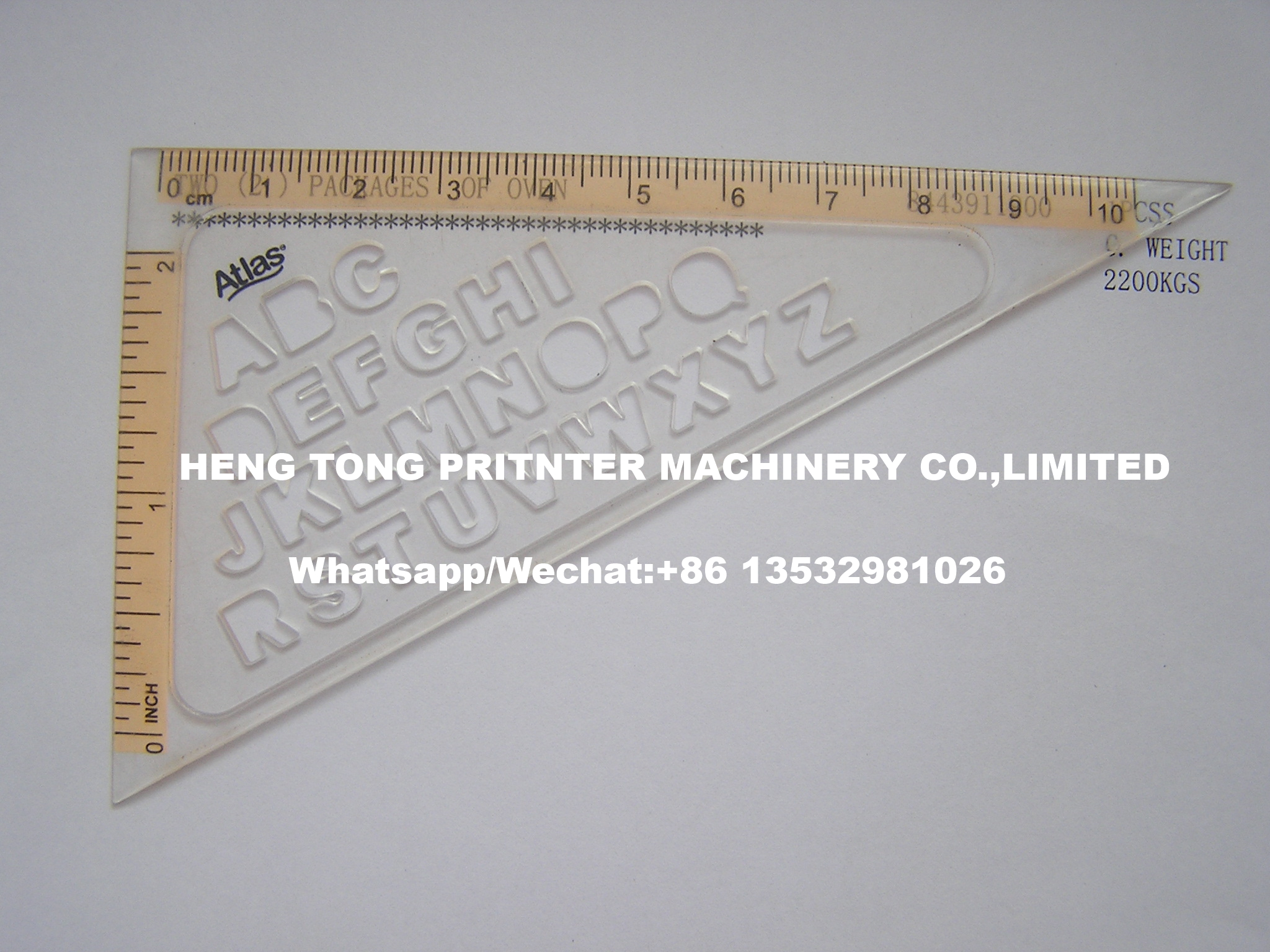

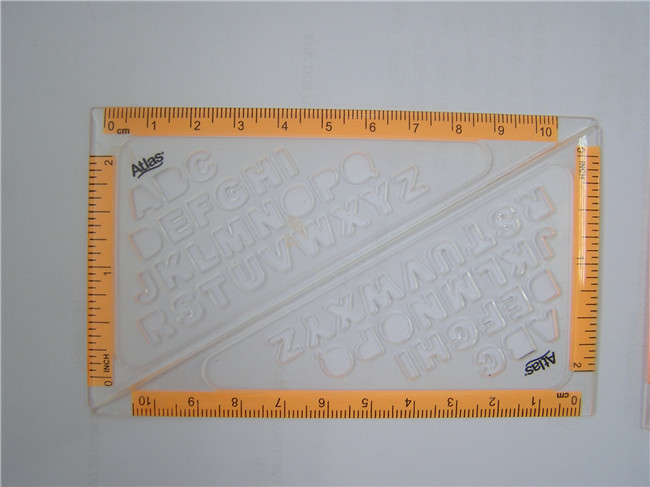

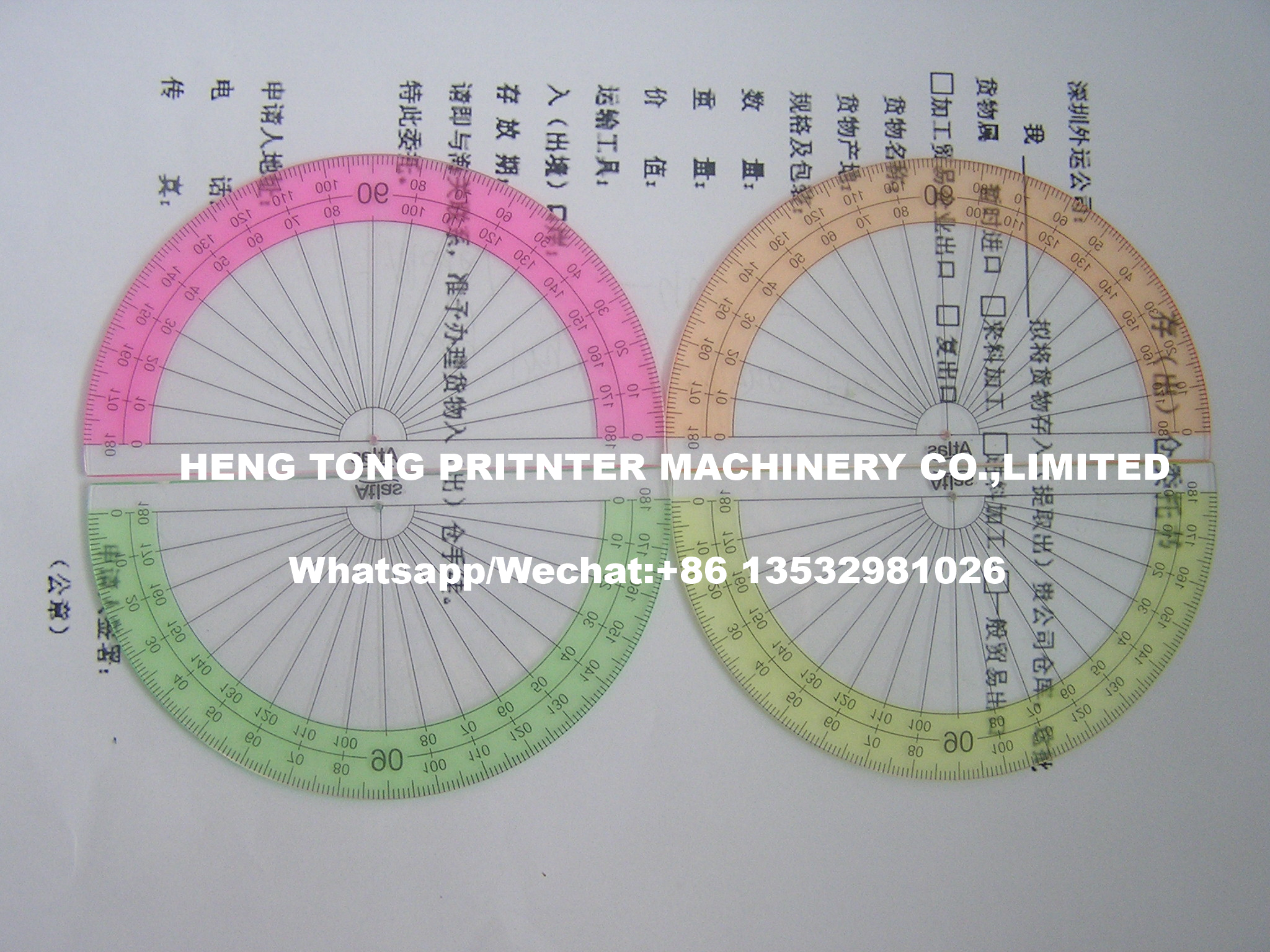

Ruler Printed Picture :
