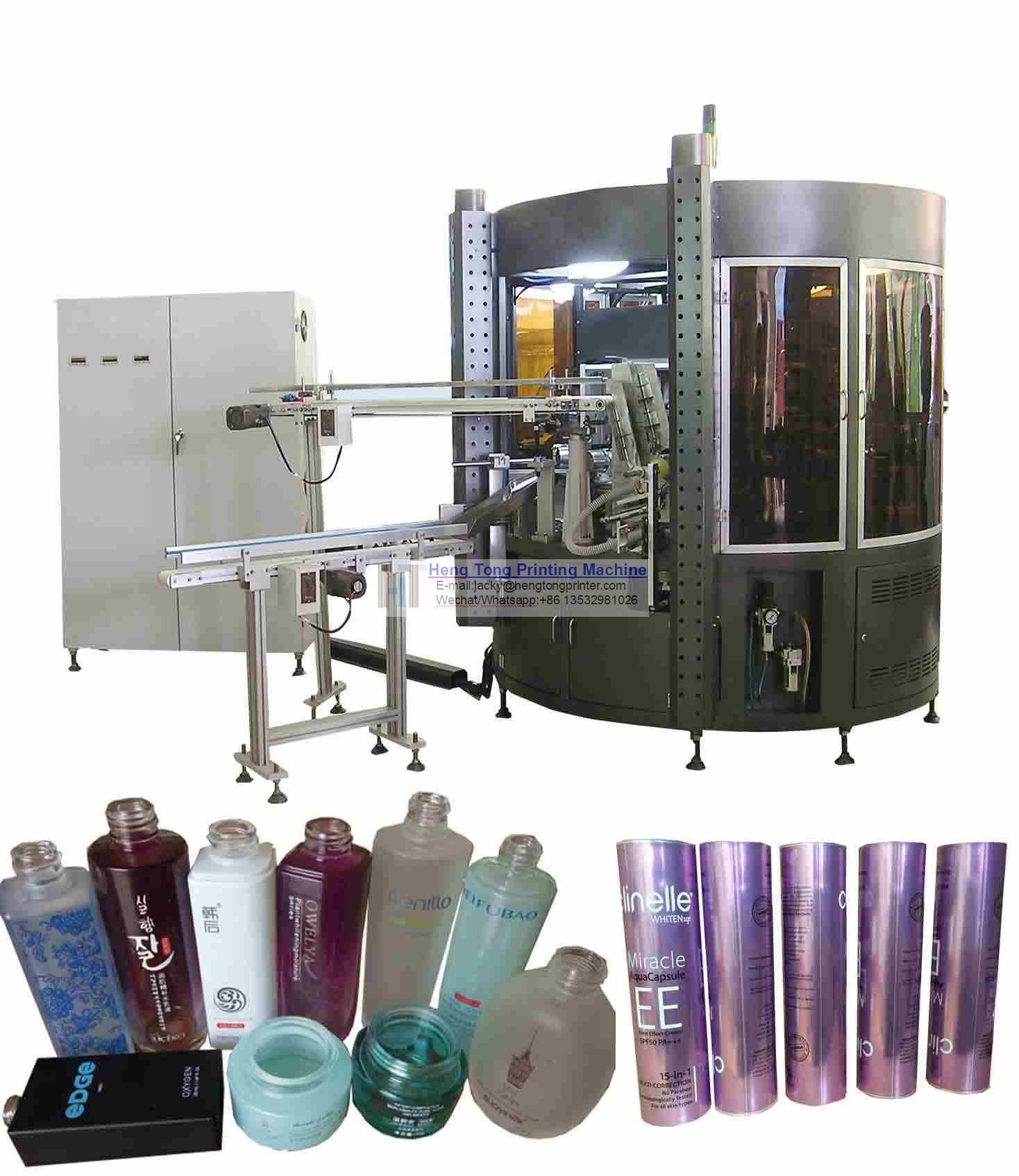

Product Description:

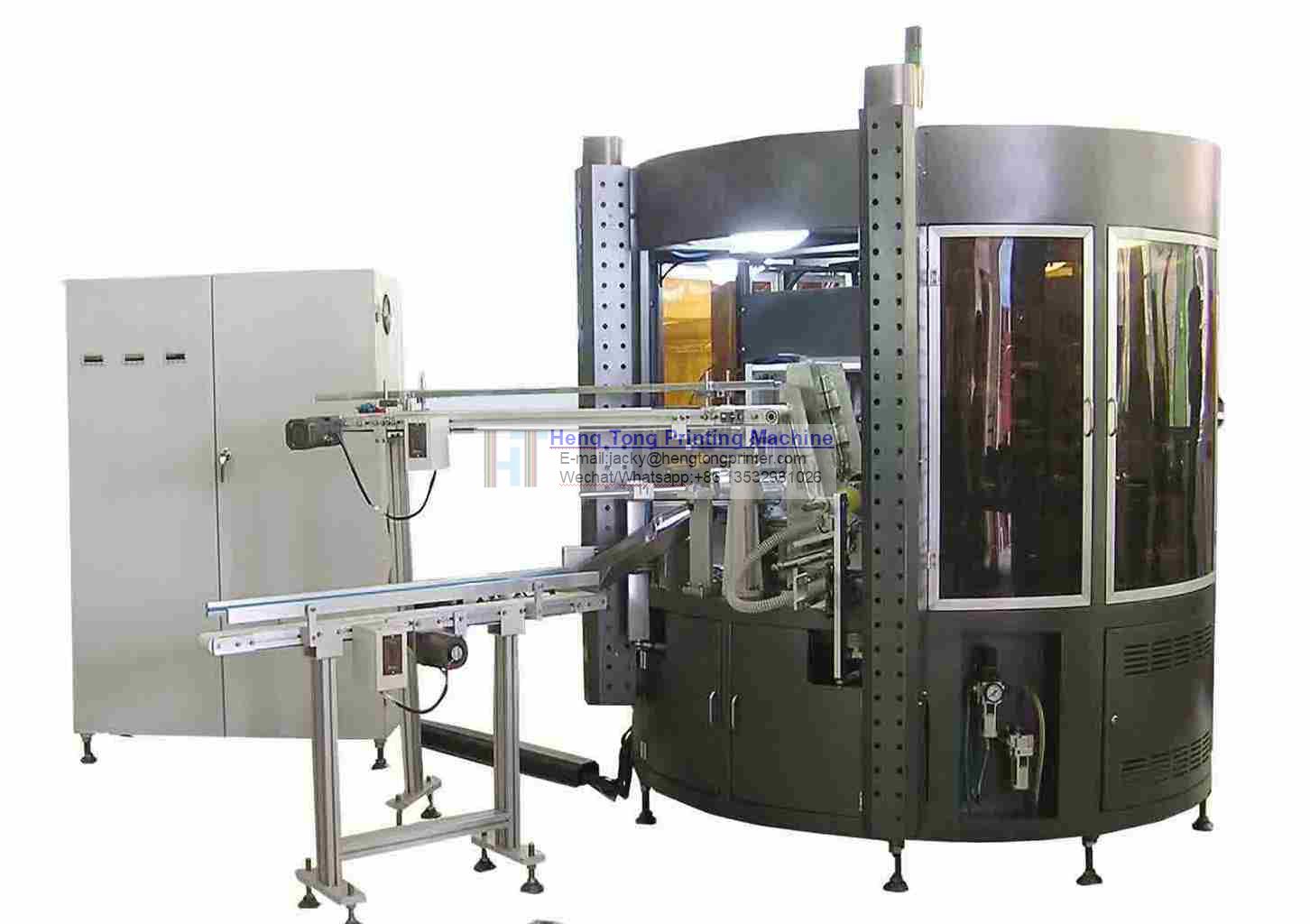

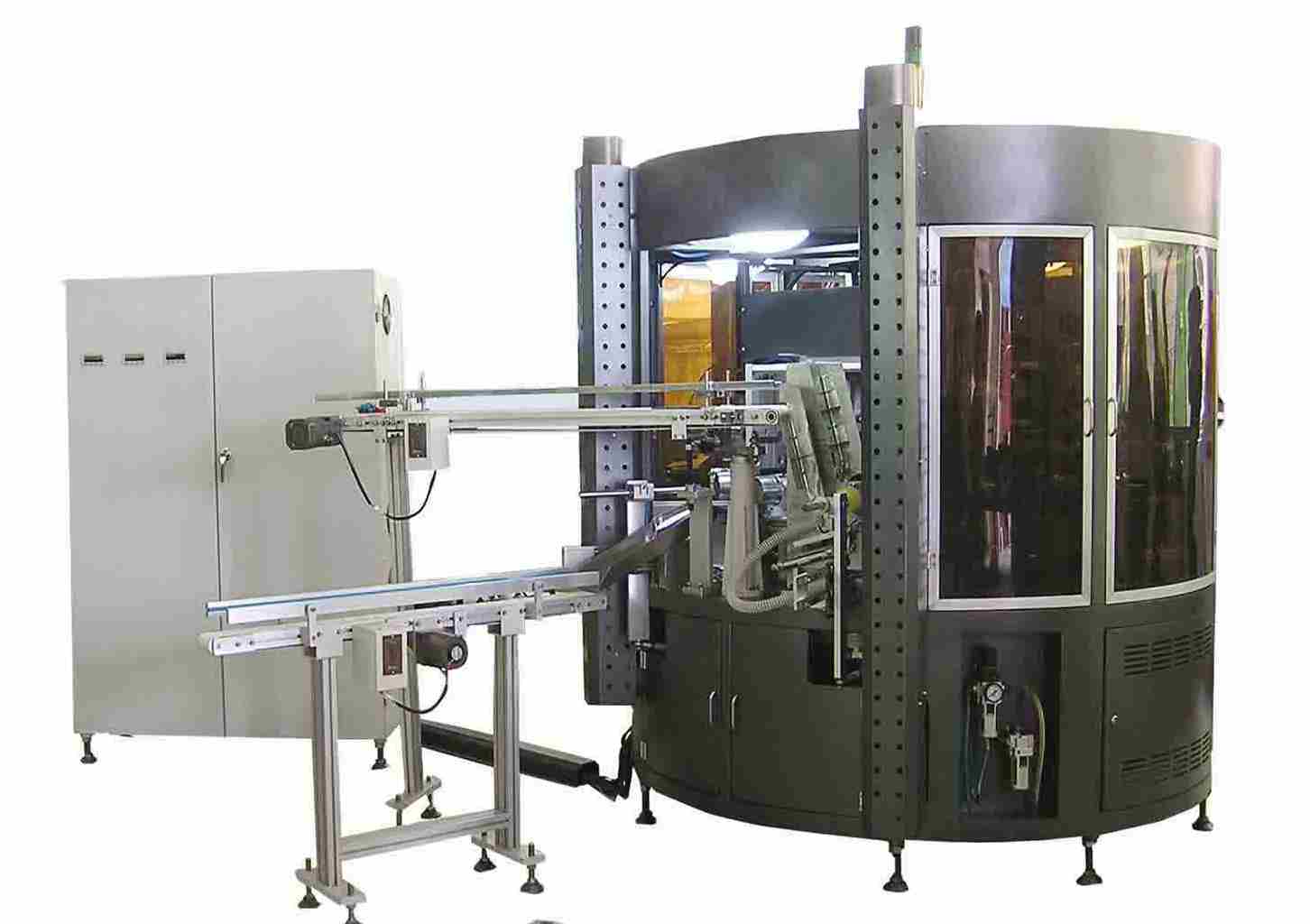

Full Automatic Rotating Disc Type Screen Printing Machine with 3 Color has multi function with 16 working stations. It is specially designed for the round shaped containers such as flexible pipes, caps, cosmetic bottles, glass mug and etc. Different working station can match with different configuration as per customers’ special requirement. Besides three stations screen printing and three UV coating system, we also can make customized auto feeder and loading system with higher efficiency and labour –saving to meet different requests and save more resources. The divider designed with rotary style, mechanical transmission and computer controlling, easy to operate and ensure high quality printing effect.
Main Function of this machine:

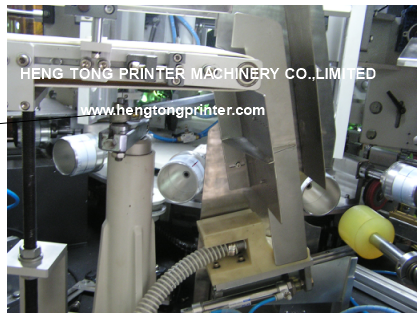

◆ Auto Feeder
◆ Surface electrostatic system
◆ Variable-speed motor system
◆ Pre-Allocation system
◆ No printing while no bottle system
◆ UV coating system
Main parts:
◆ Machine main motor: MOTOVARIO
◆ Divider: SANKYO
◆ PLC:OMRON
◆ Photoelectric switch: LEUZE
◆ Touch screen: PROFACE
◆ Button switch: APT
◆ Contactor: SCHNEIDER
◆ Relay: OMRON
◆ Frequency converter: OMRON
◆ UV coating system: HONOVIA
◆ Pneumatic components: SMC
Specification:
◆Printing diameter:20-65mm
◆ Printing height:20-120mm
◆ Printing speed:3000pcs/hour
◆ Air pressure:0.15MPA
◆ Power supply: AC220V 1 Phase/AC380V 3 Phase 50Hz/60Hz
◆ Rated power:16KW
◆ Air pressure:5-7bar
◆ Machine dimension:L2000Xw2000XH1900mm
◆ Machine weight:2000kgs
Printed Sample Pictures :
