Brief introduction:

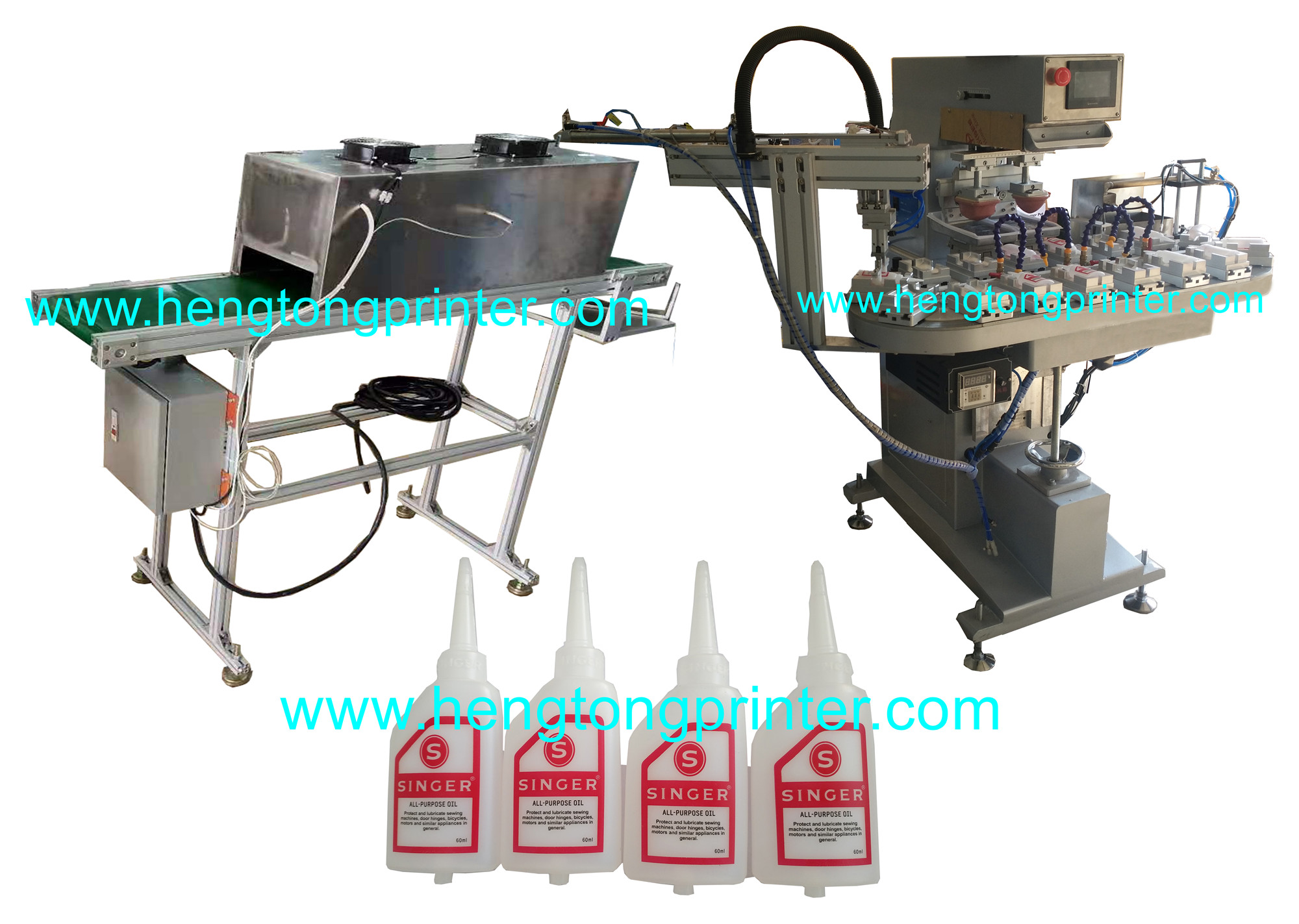

Four Color Pad Printing Machine is customized and applicable to printing 1~4 colors on the toys .It can be used for printing on different kinds of products in many industries including medical, automotive, electronics, appliances, sports equipment and toys. It is high efficiency, accurate registration, stable performance and etc .
Main function:
★Manual Feeding
★Flame Treatment Unit
★Hot Wind Drying
★4 Printing Heads(With Touch Screen And PLC Control)
★Rotary Turn Table(Conveyor) With 16 Stations
★ Pneumatic Auto Off-Loading Robot
★ Independent IR Drying Oven
Technical Parameter:
★Plate Size: 150*100mm
★Max Plate Size: 150*100mm
★Max Running Speed: About 1000PCS per hour
★Soft Pad Diameter: 90mm
★Max Soft Pad Diameter: 90mm
★Air Pressure: 5 bar
★Power Supply : AC220V Single Phase 50/60HZ
★Printing Machine Size: L1500*W900*H1580mm
IR Drying Oven Size :L1200*W500*H1580mm
★Machine weight: 380KGS
IR Drying Oven Weight :80KGS
