UV Coating Machine For Big Round Barrel , Bucket And 20L Lubricated Oil Can

Features:

The newly-designed HT-UV600RF／4M coating machine is specially designed for drying of UV ink printing on plastic and other different shaped containers. Reliable, east to use and maintain.

HT-UV600RF is mainly for ink drying for round and oval or other small flat surface printing.

High power UV lamp (300W/Inch)are selected ,three-step output power for optional, as well as the non-stepped speed regulator motor(0～30RPM）transmission belt, which could meet various production demand .The adjustable air blowing system could ensure the lamp to work under most proper temperature; over-heat lamp detection and transformer over-heat detection could ensure the machine working safety and prolong the lifespan of the UV lamps

Specification ：

◆ Bottles treated diameter：ф12mm～ф350mm

◆ Bottles treated height ：25mm～400mm

◆ Max transmission speed：4000Pcs/Hour

◆ Power supply：AC380C 3PHASE 50Hz

◆ Rated power：4.5KW

◆ Machine size：L4100mm×840mm×1850mm

◆ Machine weight：380kg

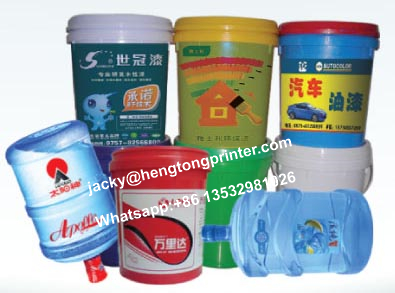

UV Drying Products Sample Picture :
