Features:

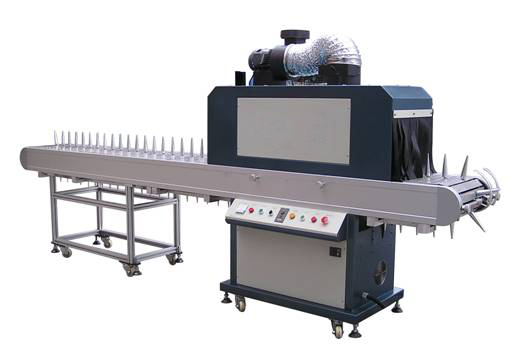

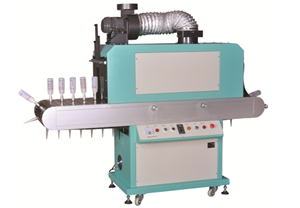

The newly-designed HT-UVRF Drying machine is specially designed for high-speed drying of UV ink printing on plastic and other different shaped containers. Reliable, easy to use and maintain.

High power UV lamp (300W/Inch)are selected ,three-step output power for optional, as well as the non-stepped speed regulator motor(0～30RPM）transmission belt, which could meet various production demand .The adjustable air blowing system could ensure the lamp to work under most proper temperature; over-heat lamp detection and transformer over-heat detection could ensure the machine working safety and prolong the lifespan of the UV lamps

Technical Parameter :

◆ Effective Treated Picture Size:L350*W250mm(As per the actual printing picture size )

◆ Entry Size :H380*W330mm

◆ Max transmission speed：1200Pcs/Hour

◆ Power supply：AC380C 3PHASE 50Hz

◆ Rated power：4.5KW

◆ Machine size：L2350mm×700mm×2200mm

◆ Machine weight：380kg

Video：

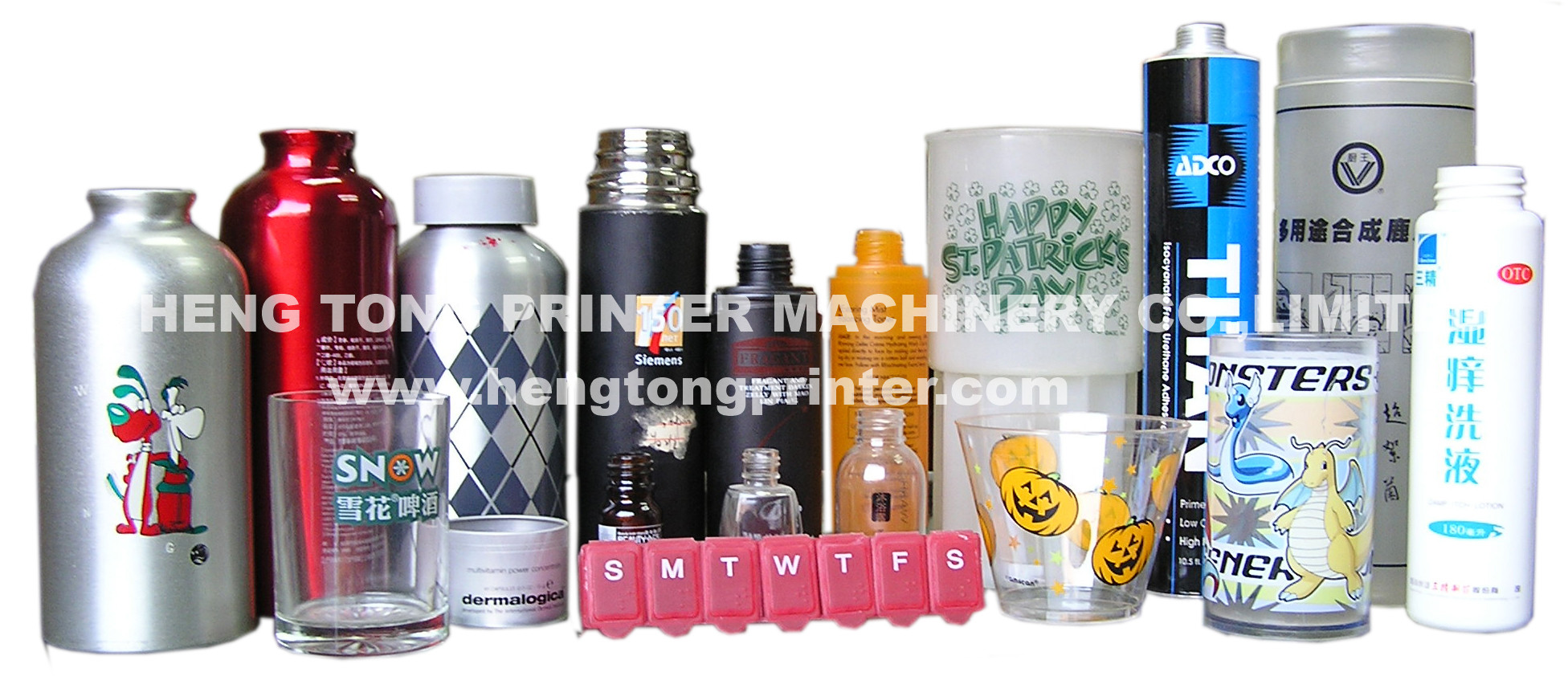

UV Drying /Coating Product Sample Picture :
