UV Coating Machine For Big Round Barrel , Bucket And 20L Lubricated Oil Can
1.Brief Introduction :

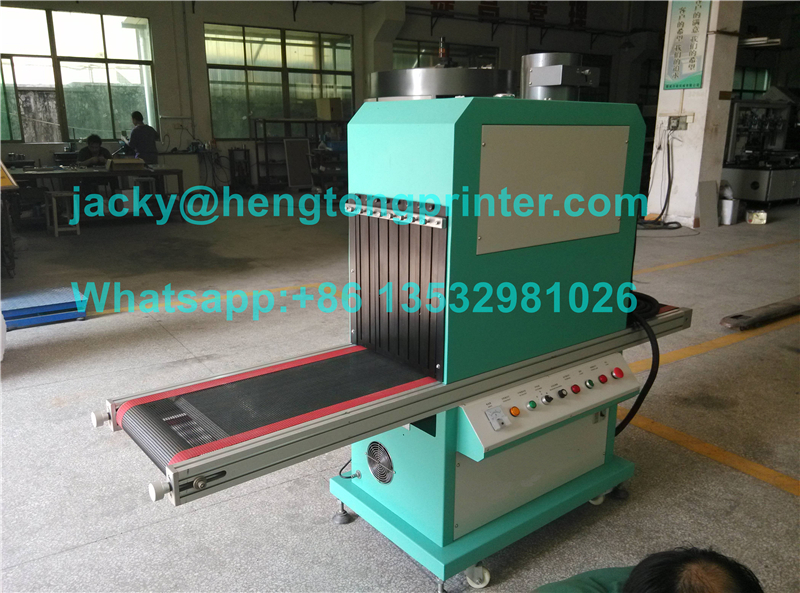

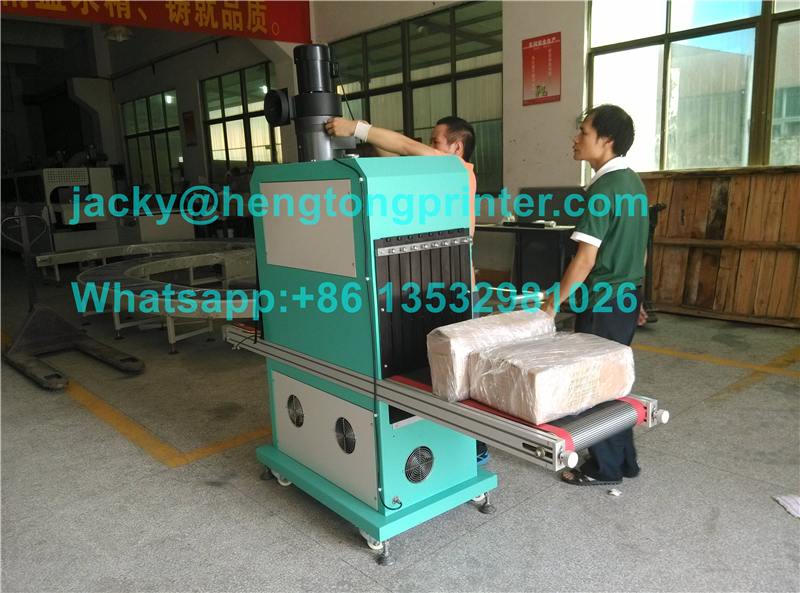

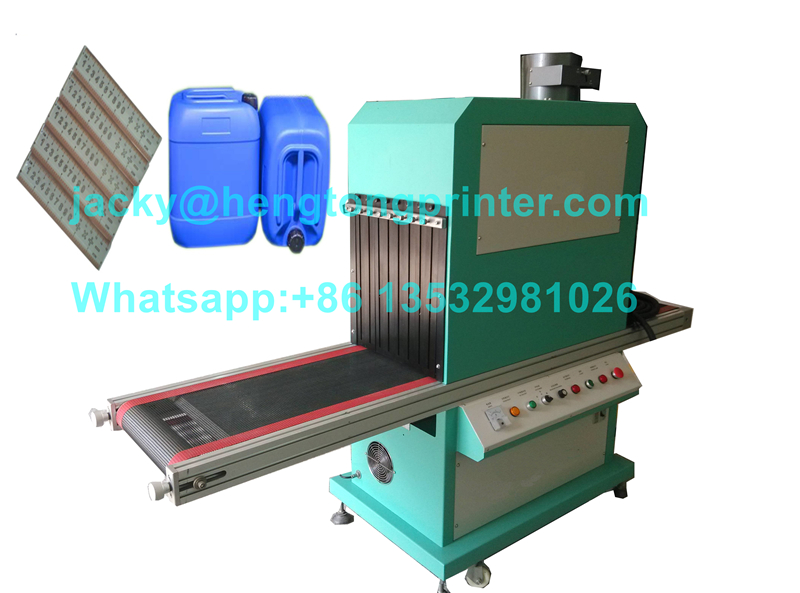

The newly-designed UV Drying Machine HT-UV400F is specially designed for fast speed drying of UV ink printing on plastic and other different shaped containers. Reliable, easy to use and maintain. HT-UV400F is mainly for ink drying for flat surface printing.

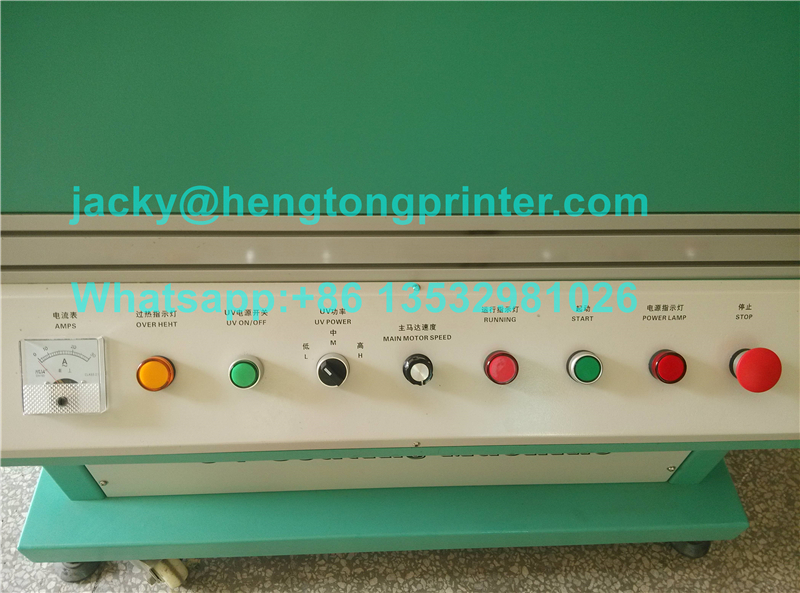

High power UV lamp (300W/Inch)are selected ,three-step output power for optional, as well as the non-stepped speed regulator motor(0~30RPM)transmission belt, which could meet various production demand .The adjustable air blowing system could ensure the lamp to work under most proper temperature; over-heat lamp detection and transformer over-heat detection could ensure the machine working safety and prolong the lifespan of the UV lamps
2.Specification :
◆ Effective Treated Picture Size:L350*W250mm
◆ Entry Size :L400*H450mm
◆ Max transmission speed:1200Pcs/Hour
◆ Power supply:AC380C 3PHASE 50Hz
◆ Rated power:5 KW
◆ Machine size:L2300mm×W650mm×H2000mm
◆ Machine weight:380kg

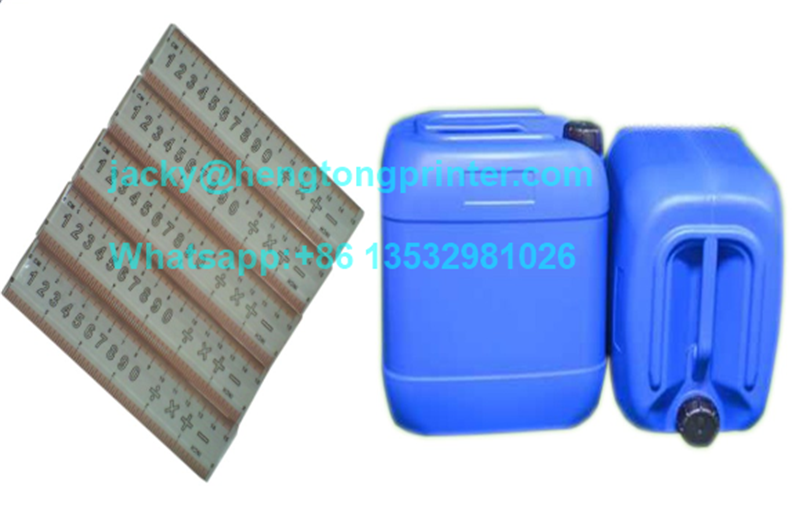

UV Drying Product Sample Picture :
Video :
