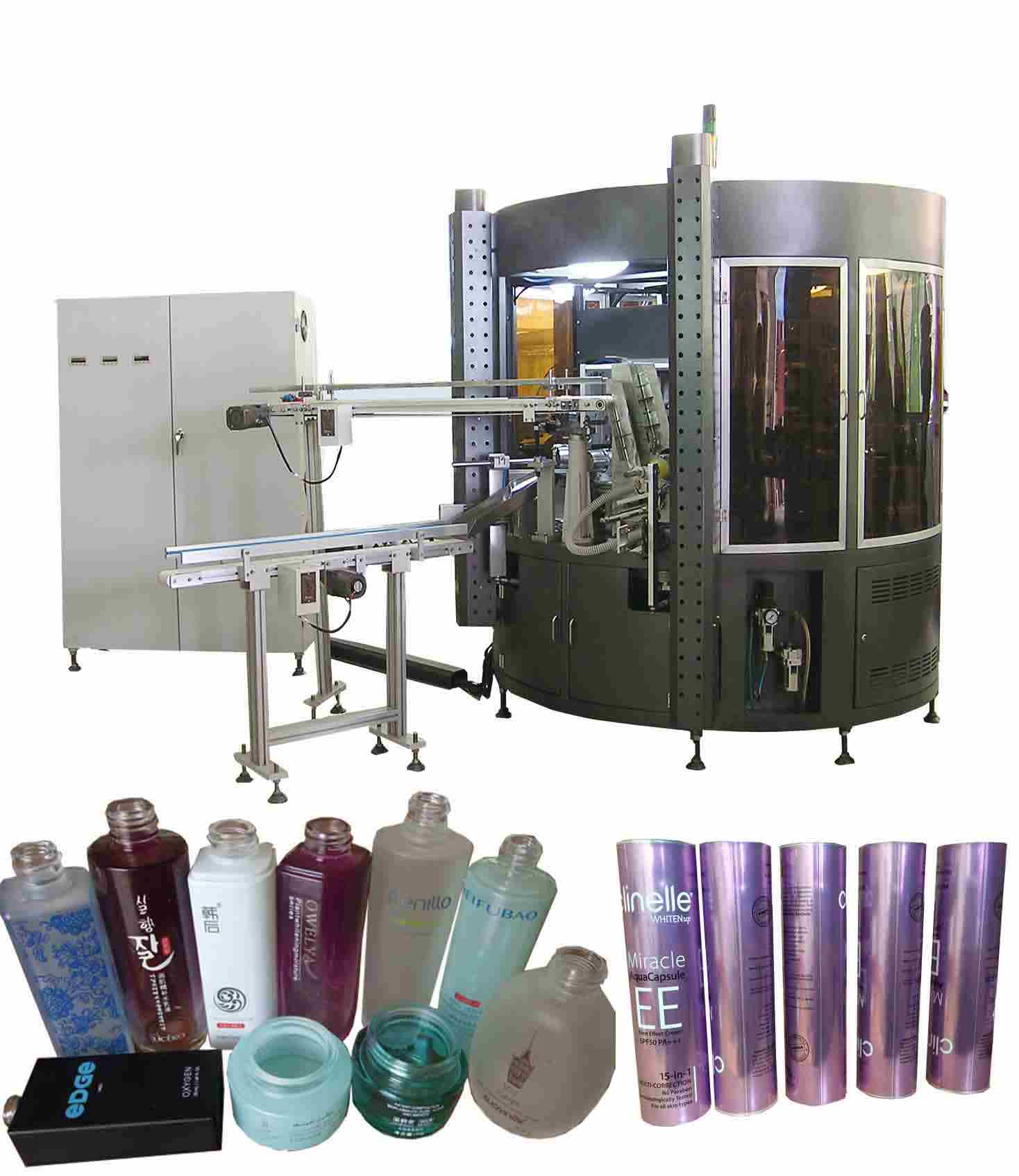

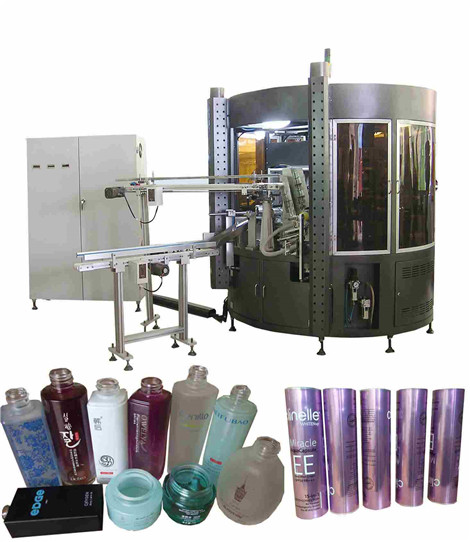

CNC Servo Multi-Color Screen Printer with Automatic Registration

  • Product Item:HT-CNC420D
  • Category:Automatic Silk Screen Printing Machine
  • Product Manual:CNC Servo Multi-Color Screen Printer with Automatic Registration ,Soft Tube Screen Printing Machine, Soft Tube Screen Printing Machine .This is CNC Servo Screen Printer with Automatic Registration . I
BASIC INFO




CNC Servo Multi-Color Screen Printer with Automatic Registration ,Soft Tube Screen Printing Machine, Soft Tube Screen Printing Machine


This is CNC Servo Screen Printer with Automatic Registration . It can do high precision multi-color overprint for soft tube screen printing , cups screen printing , bottles screen printing ,etc. This machine is very high quality . Its registration sensor is Germany Brand SICK ,Servo motor is Shenzhen Brand INOVANCE,PLC is Japan Hitachi .


Advantage:

1) Don't need any registration point . SICK sensor detect first printing to overprint , to print second color , very high precision .

2) Don'y need any gears , just fixture is enough. INOVANCE servo motor instead gear to overprint .

3) We will use LED UV Drying System for Glass printing , UV System can be better for plastic printing .


Main Parts:

1. Auto Feeder

2. Anti-Static Dust Cleaning Unit

3. Flame Treatment Unit /Plasma Treatment Unit

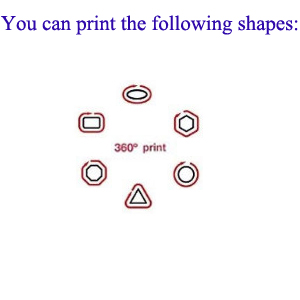

4. CNC Servo Motor Printing For Different Shape in one Circle(3D)

5. LED UV Drying System/ UV Drying System

6. Auto Off-loading Unit


Technical Parameters:

1Printing Products: all shaped glass and plastic bottles, Cylindrical objects

2Printing product dimensions: Dia18100mm * L30300mm

3Printing speed: 3045pcs/minute

4Unity machine dimensions:W3080 * L3400 * H1930not contain feeding and unloading conveyors

5VoltageAC380V

6Frequency50/60HZ

7Working total power25KW

8Working air source pressure range:0.50.6MPa

9Total weight:5000KG

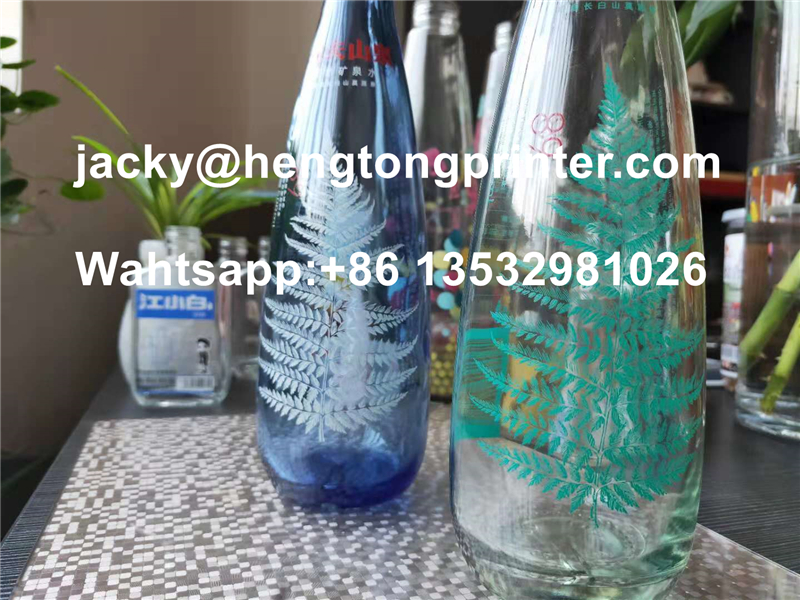

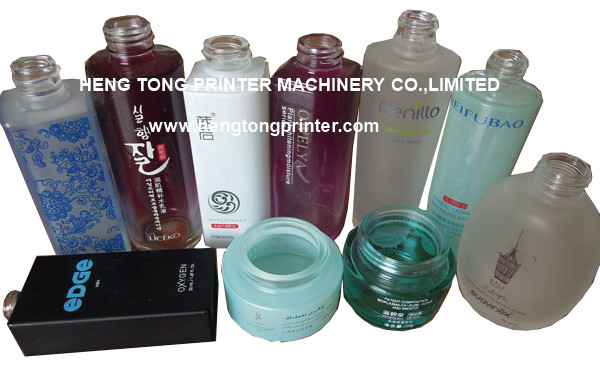

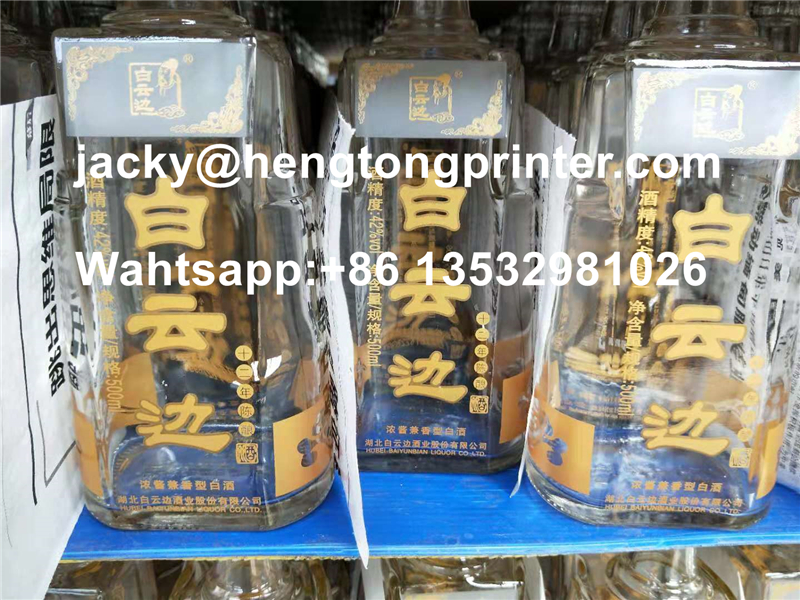

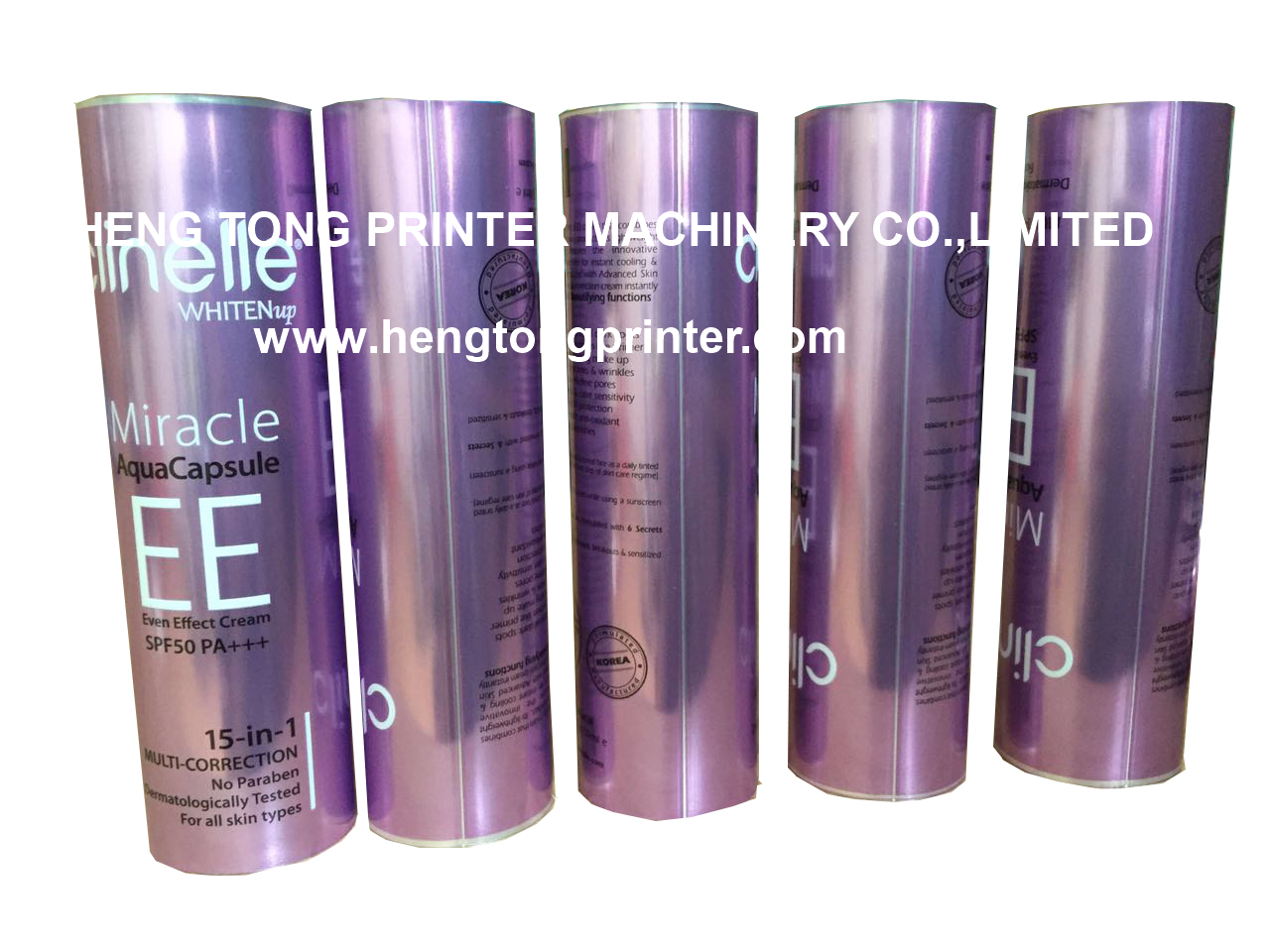

Printed Products Picture :
