Electronic Type Semi Auto Screen Printing Machine For Big Flat

BASIC INFO

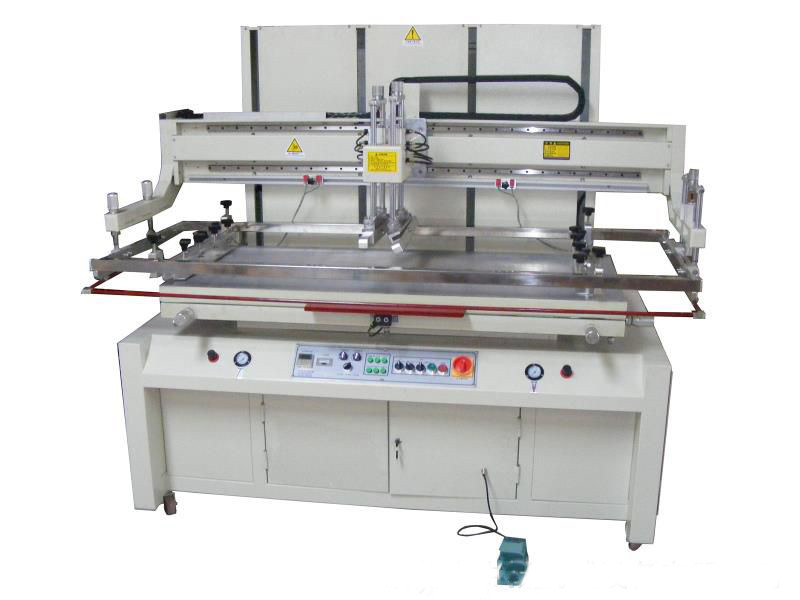

Electronic Type Semi Auto Screen Printing Machine For Big Flat (HT-60120FV)

Description

1.  HT-60120V is especially designed for thin and flat surface material , with vacuum which can absorb the workpiece firmly without any movements so as to make high-precision printing .


2.  HT-60120F is especially designed for the flat surface material with high-precision , correct overlapping and easy for loading and unloading with high efficiency .


Main parts:

■ Micro computer controls all functions and actions, high level of automation and easy operation.

■ Four-digit automatic counter

■ Adjustable printing stroke and speed, can meet all different printing requests..

■ The title angle of working table can be adjusted slightly up-and-down, left-and-right and level. very convenient to calibrate.

■ Printing & ink-return are controlled by pneumatic system with pressure adjustment function.

■ Steady micro computer controller.

■ Bright & clear blue monitor to show machine status at any time.

■ High qualified ‘AUTONICS’ sensor & perfect error alarm system.

■ Convenient foot switch, easy to operate and maintenance.

■ Use light but strong die-casting alloy components & imported wearable bearing & spindle sleeve.

■ SMC、FESTO and other international famous brands as pneumatic parts.

■ Separated speed control for printing and ink-return


Technical Parameter:

Max printing size : 500m1100mm

Working Table size : 600m1200mm

Max printing thickness : 200mm


Max printing speed : 1000pcs/ hour

Power supply : AC220V 50/60Hz

Rated power : 450W

Air pressure : 5~7 bar

Machine size : 1500m1000mm×1650mm

Machine weight : 400kg
