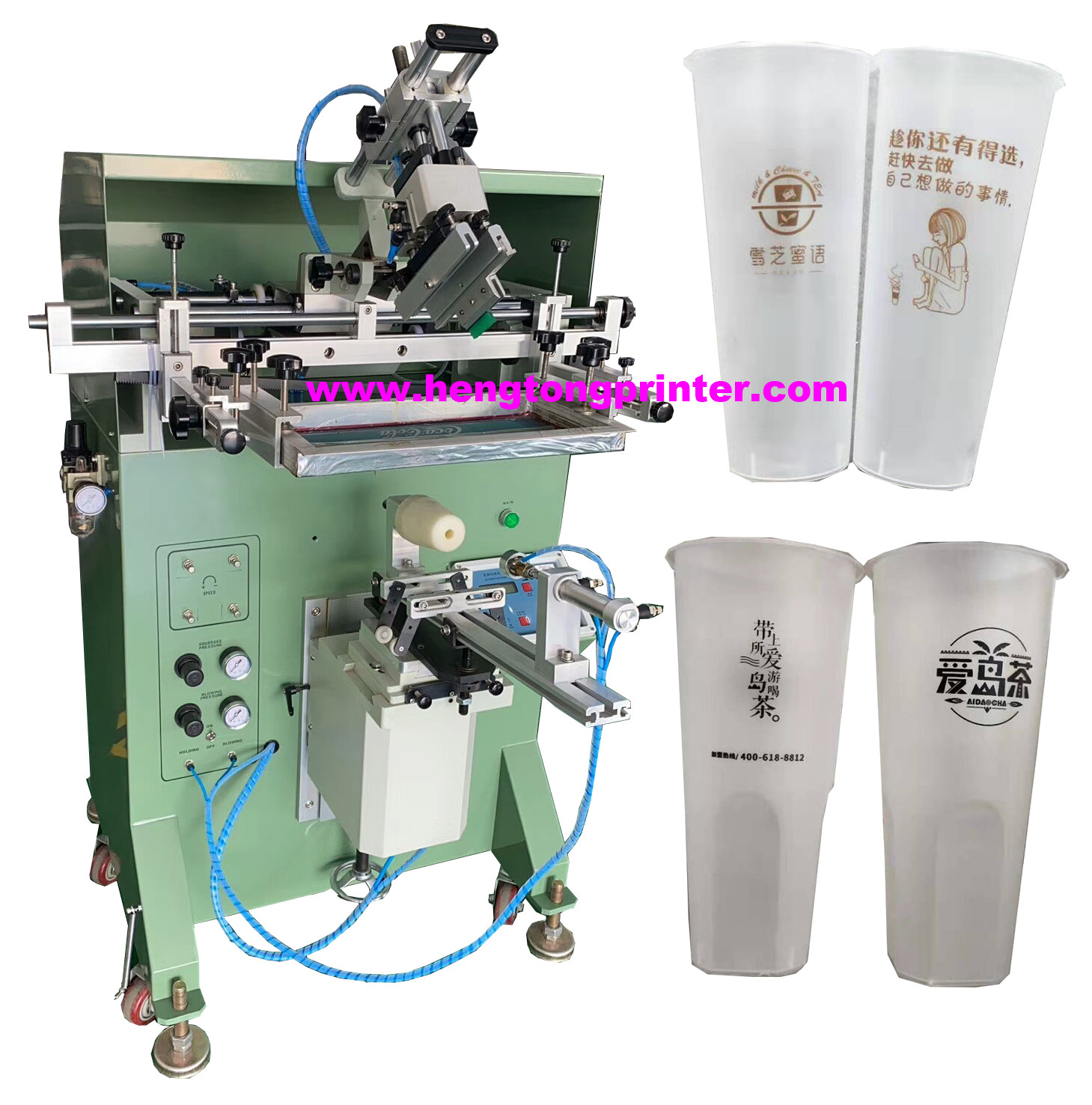

Single Color Semi Auto Screen Printing Machine For Beverage Cup

（HT-400R）

Description：

This machine is called “multi-purpose machine” as it can printing on different shaped material,such as :round,oval,flat etc.it could reach the expected effect easily.as it is well popular as “universal machine”.

This machine is widely applicable to high-precision printing pictures & words on the container surface in cosmetic, medicine, food, electric appliance, toy, cabinet and many other fields.

Main parts:

■ Micro computer controls all functions and actions to ensure high degree of automation and easy operation.

■ Four-digit automatic counter inside setted

■ The printing stroke and speed are adjustable to ensure different requests.

■ The title angle of working table can be adjusted slightly up-and-down, left-and-right and level.very convinient to calibrate.

■ Printing & ink-return are controlled by pneumatic system with pressure adjustment function.

■ Steady micro computer controller.

■ Bright & clear blue monitor to show machine status at any time.

■ High qualified ‘AUTONICS’ sensor & perfect error alarm system.

■ Convenient foot switch, easy to operate and maintenance.

■ Use Light and strong alloy die-casting components & exported wearable bearing & spindle sleeve.

■ Use SMC、FESTO and other international famous brands as pneumatic parts.

■Separated speed control for printing and ink-return

Technical Perameter ：

◆ Max printing diameter for round：≤120mm

◆ Max printing length for round：≤250mm

◆ Max printing speed：1000pcs/hour

◆ Adjustable worktable height：100mm

◆ Power supply：AC220V 50/60Hz

◆ Rated power：100W

◆ Air pressure：4～6bar

◆ Machine size：820mmx1000mmx1280mm

◆ Machine weight：145 kg
