Semi Auto Screen Printing Machine With Rotary Table For Flat

BASIC INFO

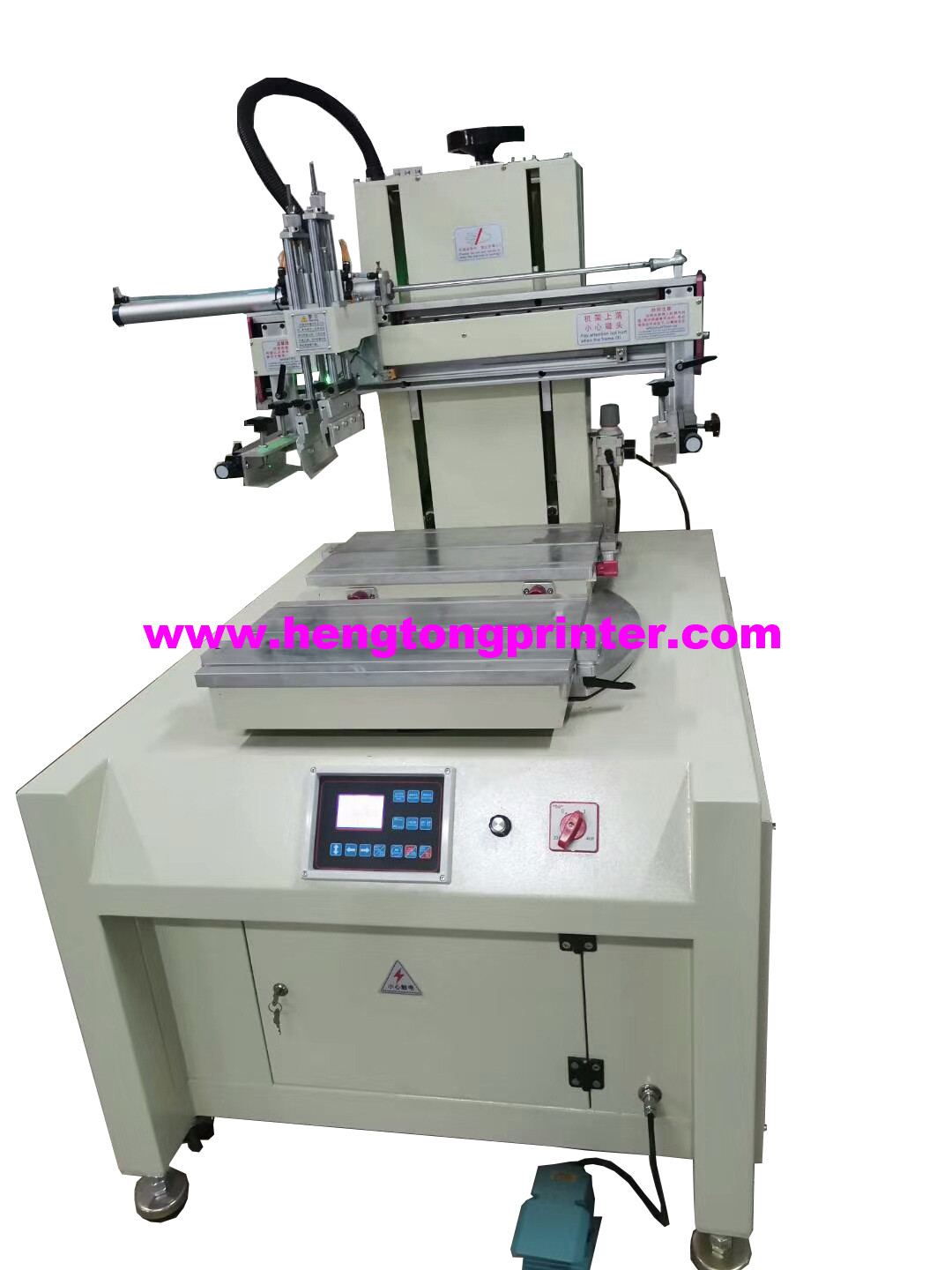

Semi Auto Screen Printing Machine With Rotary Table For Flat

(HT-5070F/V2)

Description

1. HT-5070V2 is especially designed for thin and flat surface material , with vacuum which can absorb the workpiece firmly without any movements so as to make high-precision printing .


2. HT-5070F2 is especially designed for the flat surface material with high-precision , correct overlapping and easy for loading and unloading with high efficiency .


Main parts:

Micro computer controls all functions and actions, high level of automation and easy operation.

Four-digit automatic counter

Adjustable printing stroke and speed, can meet all different printing requests..

The title angle of working table can be adjusted slightly up-and-down, left-and-right and level. very convenient to calibrate.

Printing & ink-return are controlled by pneumatic system with pressure adjustment function.

Steady micro computer controller.

Bright & clear blue monitor to show machine status at any time.

High qualified ‘AUTONICS’ sensor & perfect error alarm system.

Convenient foot switch, easy to operate and maintenance.

Use light but strong die-casting alloy components & imported wearable bearing & spindle sleeve.

SMCFESTO and other international famous brands as pneumatic parts.

Separated speed control for printing and ink-return


Technical Parameter:

Max printing size : 400mm×600mm

◆Each Working Table size : 500mm×700mm

Max printing thickness : 200mm

Max printing speed : 1000pcs/ hour

Power supply : AC220V 50/60Hz

Rated power : 450W

Air pressure : 5~7 bar

Machine size : 1000m800mm×1650mm

Machine weight : 400kg
