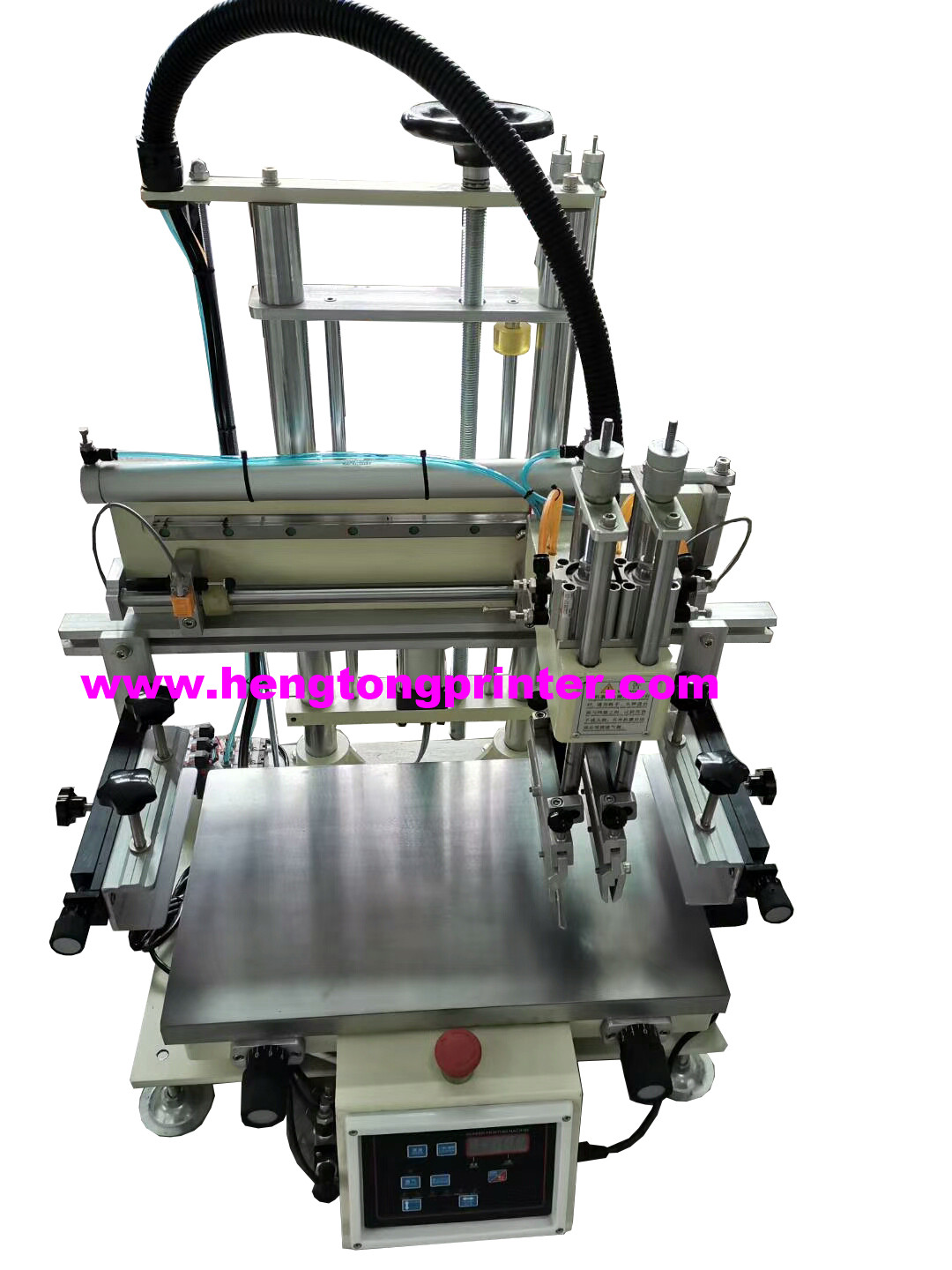

Desktop SemiAuto Screen Printing Machine For Flat (HT-3050F/V)

Description：

1. HT-3050V is especially designed for thin and flat surface material , with vacuum which can absorb the workpiece firmly without any movements so as to make high-precision printing .

2.  HT-3050F is especially designed for the flat surface material with high-precision , correct overlapping and easy for loading and unloading with high efficiency .

Main parts:

■ Micro computer controls all functions and actions, high level of automation and easy operation.

■ Four-digit automatic counter

■ Adjustable printing stroke and speed, can meet all different printing requests..

■ The title angle of working table can be adjusted slightly up-and-down, left-and-right and level. very convenient to calibrate.

■ Printing & ink-return are controlled by pneumatic system with pressure adjustment function.

■ Steady micro computer controller.

■ Bright & clear blue monitor to show machine status at any time.

■ High qualified ‘AUTONICS’ sensor & perfect error alarm system.

■ Convenient foot switch, easy to operate and maintenance.

■Use light but strong die-casting alloy components & imported wearable bearing &spindle sleeve.

■ SMC、FESTO and other international famous brands as pneumatic parts.

■ Separated speed control for printing and ink-return

Technical Parameter:

◆Max printing size : 200mm×400mm

◆Working Table size : 300mm×500mm

◆Max printing thickness : 200mm

◆Max printing speed : 1000pcs/ hour

◆Power supply : AC220V 50/60Hz

◆Rated power : 450W

◆Air pressure : 5~7 bar

◆Machine size : 600mm×600mm×850mm

◆Machine weight : 50kg
