Desktop Semi Auto Screen Printing Machine For Flat With Vacuum

BASIC INFO

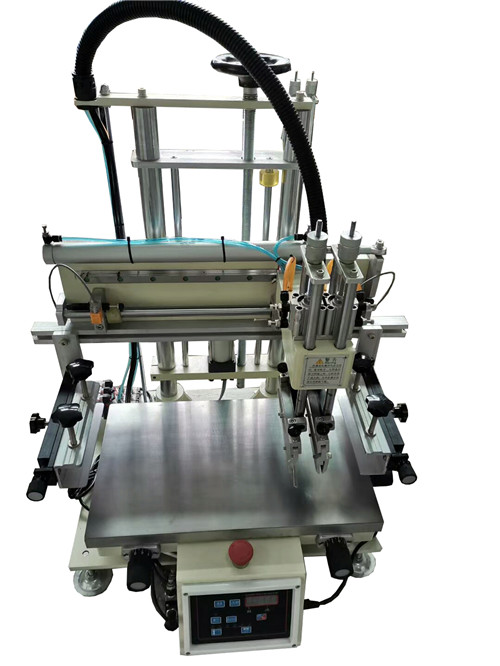

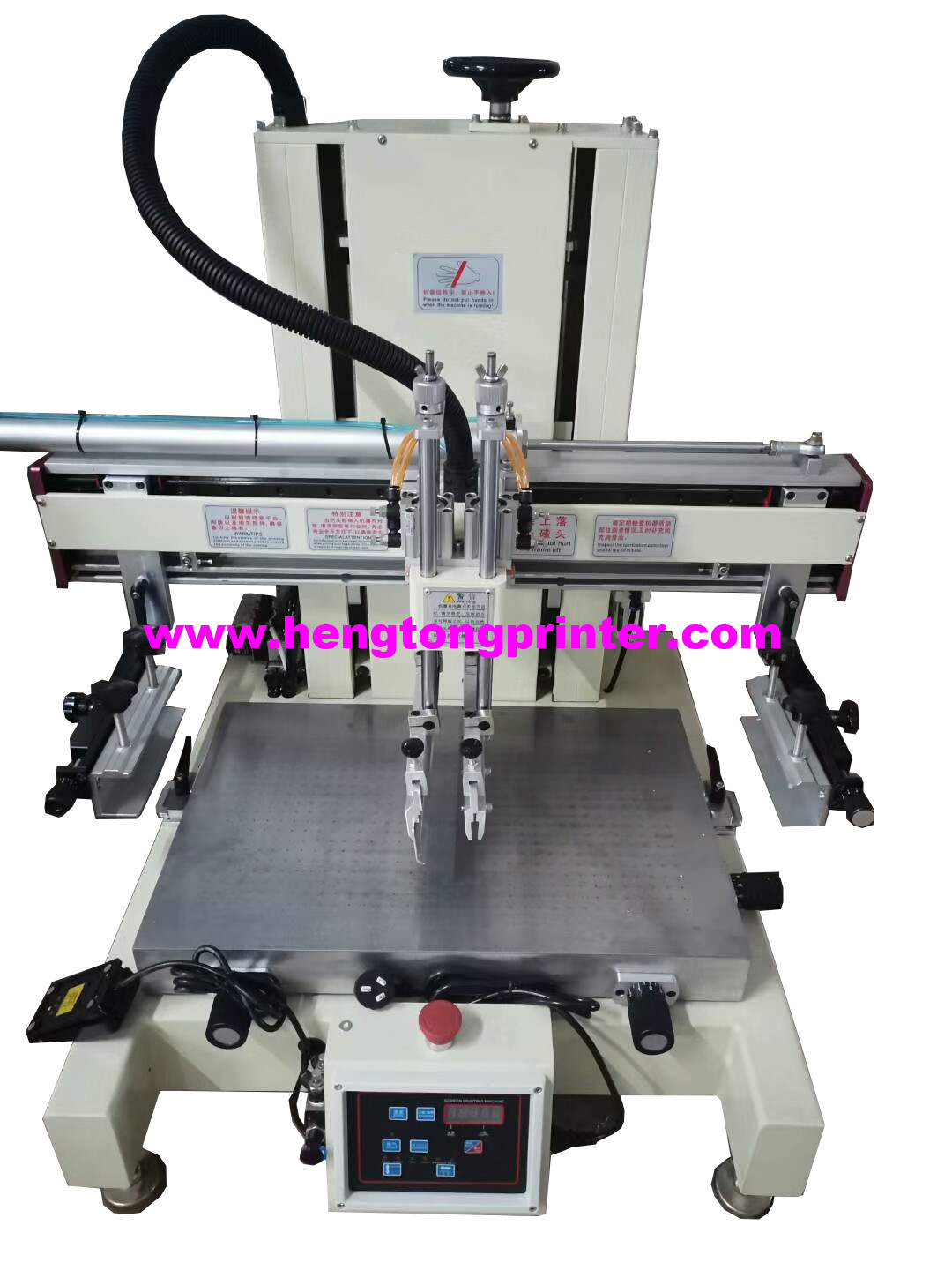

Desktop Semi Auto Screen Printing Machine For Flat With Vacuum

 (HT-3050V)



Description

1.  HT-3050V is especially designed for thin and flat surface material , with vacuum which can absorb the workpiece firmly without any movements so as to make high-precision printing .


2. HT-3050F is especially designed for the flat surface material with high-precision , correct overlapping and easy for loading and unloading with high efficiency .



Main parts:

■ Micro computer controls all functions and actions, high level of automation and easy operation.

■ Four-digit automatic counter

■ Adjustable printing stroke and speed, can meet all different printing requests..

■ The title angle of working table can be adjusted slightly up-and-down, left-and-right and level. very convenient to calibrate.

■ Printing & ink-return are controlled by pneumatic system with pressure adjustment function.

■ Steady micro computer controller.

■ Bright & clear blue monitor to show machine status at any time.

■ High qualified ‘AUTONICS’ sensor & perfect error alarm system.

■ Convenient foot switch, easy to operate and maintenance.

■ Use light but strong die-casting alloy components & imported wearable bearing & spindle sleeve.

■ SMCFESTO and other international famous brands as pneumatic parts.

■ Separated speed control for printing and ink-return


Technical Parameter:

Max printing size : 200mm×400mm

◆Working Table size : 300mm×500mm

Max printing thickness : 200mm

Max printing speed : 1000pcs/ hour

Power supply : AC220V 50/60Hz

Rated power : 450W

Air pressure : 5~7 bar

Machine size : 600mm×500mm×850mm

Machine weight : 50kg
