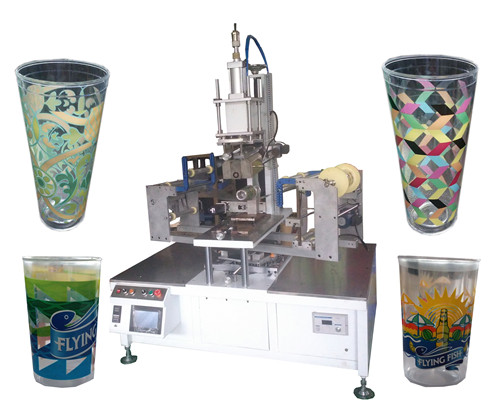

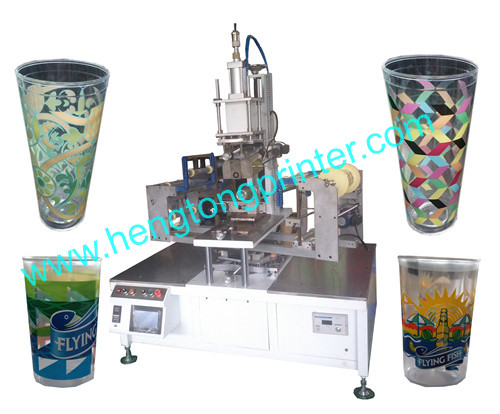

Conical Cup Heat Transfer Machine

Category：Heat Transfer Machine
Product Manual：Conical Cup Heat Transfer Machine, Heat Transfer Machine , Hot Stamping Machine ,Heat Transfer Film

BASIC INFO

Product Description ：

Conical Heat Transfer Machine is special designed for conical products ,such as pen holders and etc .Its conical scale can be adjusted as per your actual requirements . It is improved on the base of old taper heat transfer machine so as to save the production cost and be suitable for different kinds of products . With good printing effect , low power comsuption and easy to control .

Technical Parameter ：

Model	HT-RTC200PLC
Heat Transfer Speed	8 pcs per min
Heat Transfer Stroke	350 mm
Max Object Size	φ100 mm
Working Table Size	240×320 mm
Winding Length	0~250 mm
Temperature Control	Room Temperature~399℃
Power Application	AC220V 1P 50/60HZ
Compressed Air Required	0.5~0.7Mpa
Hot Stamping Head Going Downward Stroke	220mm(Can Be Adjustable 50MM)
Max Heat Transfer Size	*300220mm**
