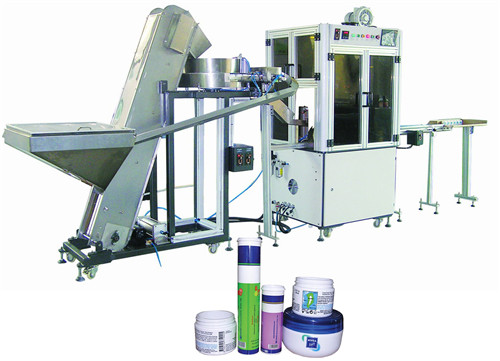

Description：

1. The heat transfer machine especially designed for the material with multi

colors printing , imprecise overlapping , unoblivious layers , large production ,

high cost , low fastness and class , contamination . It could not only printed on

the material such as crystal , stone , metal and glass , but also suitable on the

soft materail as leather , cloth and cotton .

2. Inorganic substances , together with the complex organic substances coulde

be printed on. The heat transfer machine is more compatible with the different

materails , and avoid the material problem which currently facing with the screen

printing and water transfer . Moreover , it is helpful to avoid the harmfulness

caused onto the leather , cloth and cotton by hot transferring . The feature of

the machine : precise overlapping , fabulous color effect , oblivious layers , one –

time work , high efficiency , nine fastness , increasing additional value

,environment and long-time storage .

Main Function:

1. Auto feeder

2. Surface electrosatic system

3. Photoelectrical pre-allocation system

4. No printing while no bottle system

Technical parameter:

1. Round and cylindrical containers

2. Printing diameter : 20~100mm

3. Printing Length : 20~150mm

4. Printing speed : 1500pcs/hour

5. Heating power : 1.5KW

6. Power supply : AC220V 1 Phase/ AC 380V 3 Phase 50/60HZ

7. Rated power : 2.5KW

8. Air pressure : 5~8 bar

9. Machine weight : 1000kg
