PP Water Bottle Heat Transfer Machine

Category：Heat Transfer Machine
Product Manual：PP Water Bottle Heat Transfer Machine,Sports Water Bottle Heat Transfer Machine , Heat Transfer Machine , Heat Transfer Film

BASIC INFO

Product Description ：

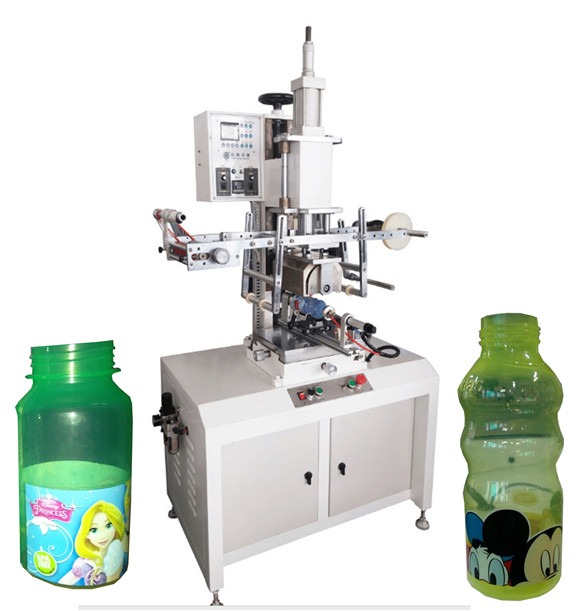

Semi Auto Heat Transfer Machine HT-RT150-350RF is specially designed for Hot Stamping the whole surface of plastic container .Not only it can hot stamping , but also heat transformer , so as to replace the electroplating technology . It has many advantages , such as precise overprinting , colorful life , distinct overlapping , one time successful, high efficiency , good winding to increase the products added value and ensure environmental production and etc .

Technical Parameter ：

Model	HT-RT150-350RF
Hot Stamping Speed	15~100MM/Sec
Hot Stamping Stroke	350 mm
Max Object Size	φ110 mm
Working Table Size	240×320 mm
Winding Length	0~250 mm
Temperature Control	Room Temperature~399℃
Power Application	AC220V 1P 50/60HZ
Compressed Air Required	0.5~0.7Mpa
Hot Stamping Head Going Downward Stroke	220mm(Can Be Adjustable 50MM)
Max Heat Transfer Size	300*220mm
