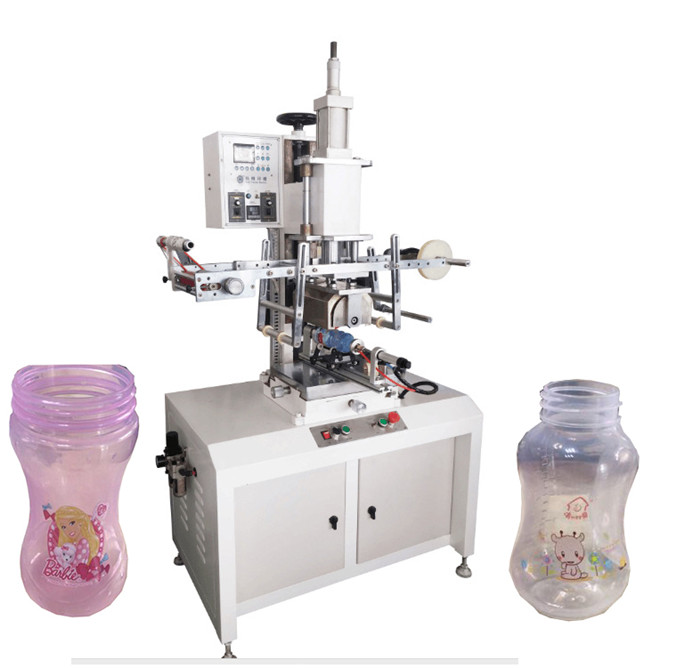

PP Baby Feeding Bottle Heat Transfer Machine

Category：Heat Transfer Machine
Product Manual：PP Baby Feeding Bottle Heat Transfer Machine，Water Bottle Heat Transfer Machine, Cylindrical Product Heat Transfer Machine, Heat Transfer Flim， Heat Transfer Film

BASIC INFO

Product Description ：

Semi Auto Heat Transfer Machine HT-RT150-350RF is specially designed for Hot Stamping the whole surface of plastic container .Not only it can hot stamping , but also heat transformer , so as to replace the electroplating technology . It has many advantages , such as precise overprinting , colorful life , distinct overlapping , one time successful, high efficiency , good winding to increase the products added value and ensure environmental production and etc .

Technical Parameter ：

Model	HT-RT150-350RF
Hot Stamping Speed	15~100MM/Sec
Hot Stamping Stroke	350 mm
Max Object Size	φ110 mm
Working Table Size	240×320 mm
Winding Length	0~250 mm
Temperature Control	Room Temperature~399℃
Power Application	AC220V 1P 50/60HZ
Compressed Air Required	0.5~0.7Mpa
Hot Stamping Head Going Downward Stroke	220mm(Can Be Adjustable 50MM)
Max Heat Transfer Size	300*220mm
