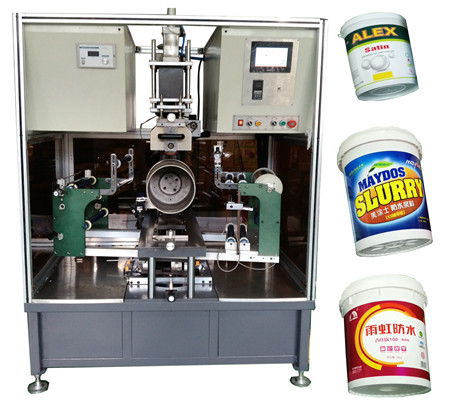

Heat Transfer Machine For Big Conical Bucket

BASIC INFO


<iframe width="695" height="391" src="https://www.youtube.com/embed/ctmxKICd0_g" frameborder="0" allow="accelerometer; autoplay; encrypted-media; gyroscope; picture-in-picture" allowfullscreen></iframe>


Product Description

Conical Heat Transfer Machine is special designed for conical round barrel from 4L to 20L .Its conical scale can be adjusted as per your actual requirements . It is improved on the base of old taper heat transfer machine so as to save the production cost and be suitable for different kinds of products . With good printing effect , low power comsuption and easy to control .

Technical Parameter

◆Heat Transfer Speed: 8 pcs per min

◆Heat Transfer Stroke: 950MM

Max Object Size: φ300 mm (From 4L ~20L)

◆Winding Length: 0~ 950MM

◆Temperature Control : Room Temperature~399℃

◆Power Application: AC380V 3P 50/60HZ

◆Compressed Air Required: 0.5~0.7Mpa

◆Heat Transfer Head Going Downward Stroke: 50~220mm

◆Max Heat Transfer Size: 950*220mm

◆Dimension: L1800*W1600*H1900mm

◆Machine Weight: 850KG
