Heat Transfer Machine For Bucket

Category：Heat Transfer Machine
Product Manual：Heat Transfer Machine With Automatic Winding For Bucket，Heat Transfer Machine, Heat Transfer Film, Bucket

BASIC INFO

Product Description ：

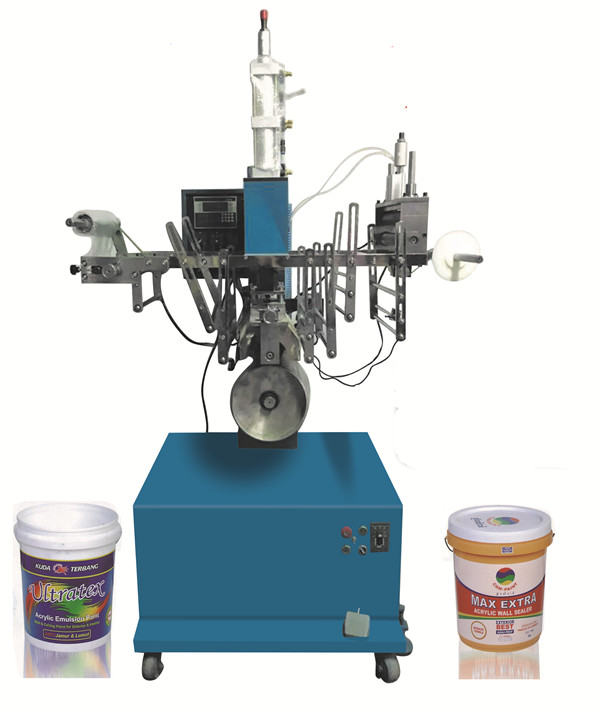

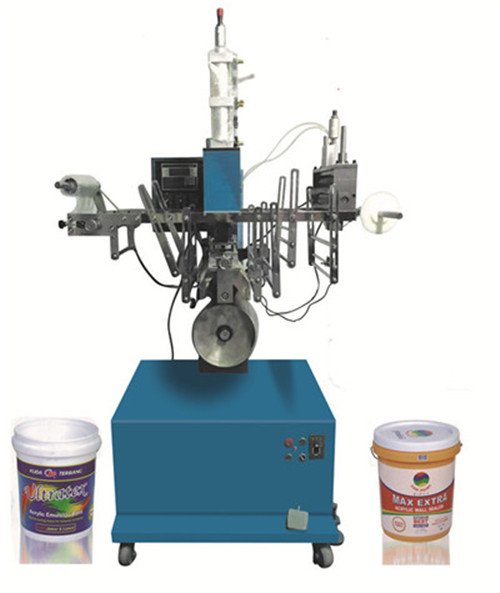

Heat Transfer Machine For Without Conical Bucket HT-RTC300 is specially designed for Heat Transfer the whole surface of plastic container .Not only it can hot stamping , but also heat transformer , so as to replace the electroplating technology . It has many advantages , such as precise overprinting , colorful life , distinct overlapping , one time successful, high efficiency , good winding to increase the products added value and ensure environmental production and etc .

Technical Parameter ：

Model	HT-RTC300
Hot Stamping Speed	15~100MM/Sec（8 PCS/Min）
Hot Stamping Stroke	950MM
Max Object Size	φ350 mm (From 4L ~25L)
Working Table Size	240×320 mm
Winding Length	0~950 mm
Temperature Control	Room Temperature~399℃
Power Application	AC220V 1P 50/60HZ
Total Rated Power	3KW
Compressed Air Required	0.5~0.7Mpa
Hot Stamping Head Going Downward Stroke	50~220mm (Can Be Adjustable 50MM)
Max Heat Transfer Size	950*220mm
Dimension	L1200W900H1700mm
Machine Weight	350KG
